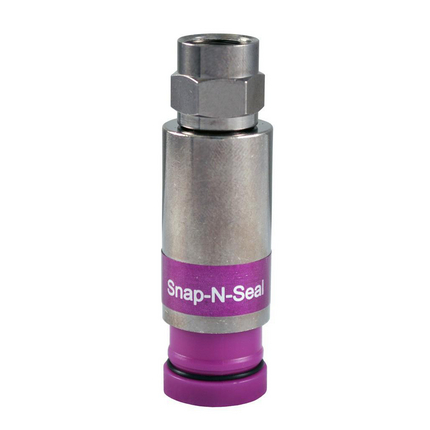

(10)ProSNS RG11 "F" male, 7/16" hex head, (quad-shield) polymer compression sleeve for easy insertion & lowest possible tool compression force. Prepositioned polymer sleeve can be detached. 25 per Pack
| Suitable Applications: | CATV, Video Distribution, RF Applications |
| Packaging: | 25 Pack |
| Number of Pieces: | 1 |
| Description | Material |
|---|---|
| Nut | Nickel/Tin Plated Brass |
| O-Ring | Ethylene Propylene |
| Body | Nickel/Tin Plated Brass |
| Contact | Gold Plated |
| Nominal Characteristic Impedance |
|---|
| 75 Ohms |
| Frequency [MHz] |
|---|
| ≥-30 dB up to 1 GHz typical |
| Electrical Characteristics Notes: | Meets or exceeds SCTE specifications. |
| Operating Temp Range: | -40°F (-40°C) to 140°F (60°C) |
| Footprint/Type: | Coax |
| Connector Interface Type: | F |
| Gender: | Male - plug |
| Connector Series Name: | ProSNS |
| Color Band: | Violet |
| Locking: | No |
| Tool Compatibility: | CPLCCT-LS59/11 or SNSUNI (compression), PS11 (strip) |
| Termination Type: | Compression |
| Cable Center Conductor Diameter Limits: | .0634 - .0647 inch |
| Cable Dielectric Diameter Limits: | .280 - .294 inch |
| Cable Outer Jacket Diameter Limits: | .390 - .417 inch |
| Cable Insertion Force: | 20 lbf |
| RG Type: | 11/U Type |
| Environmental Space: | Indoor/Outdoor |
| EU CE Mark: | Yes |
| Suitability - Indoor: | Yes |
| Suitability - Outdoor: | Yes |
| Plenum (Y/N): | No |
| Item # | Color | UPC |
|---|---|---|
| 716SNS1P11HQ-25 | No Color | 845671004977 |
| Footnote: | Q - STANDARD PACKAGES CANNOT BE BROKEN. |
| Patent: | https://www.belden.com/resources/patents |
| Notes: | Salt Fog: Passes 1000 hours ANSI/SCTE 143 2007, RFI Shielding: -85 dB (60% bonded foil) |
| Update and Revision: | Revision Number: 0.46 Revision Date: 01-31-2020 |
