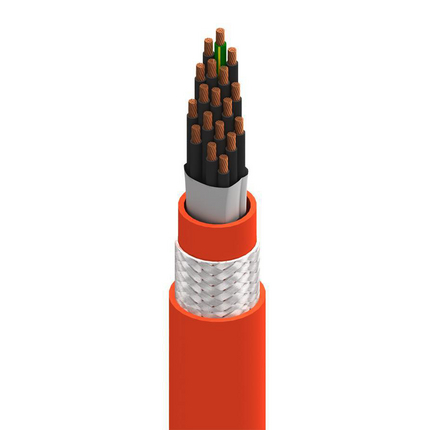

(4)MachFlex™ for High Flex, 17+1G Conductor 20AWG (74x38) Bare Copper, PVC Insulation, TPE Outer Jacket, PLTC
| Suitable Applications: | Robotics, Robot, Continuous Flex |
| AWG | Stranding |
|---|---|
| 20 | 74x38 |
| Conductor Count: | 18 |
| Material |
|---|
| PVC - Polyvinyl Chloride |
| Material |
|---|
| Tinned Copper (TC) |
| Material |
|---|
| TPE - Thermoplastic Elastomer |
| Update and Revision: | Revision Number: 0.80 Revision Date: 05-31-2024 |
