70075 - 1 PAIR AES/EBU, 24AWG, ISTP, FRNC/LSZH


1 PAIR AES/EBU, 24AWG, ISTP, FRNC/LSZH

Product Overview

Suitable Applications: Digital multi-modulation cable used in professional studios; For the transmission of analogue and digital audio signals; Designed to meet the requirements of the AES/EBU specification

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialCross SectionConstruction n x D
247x32BC-OFHC - Oxygen-Free Bare Copper (High Conductivity)0.22 mm²7x0.20 mm
Conductor Count: 2
Total Number of Pairs: 1
Insulation
TypeMaterialNominal DiameterDiameter +/- Tolerance
InsulationPE - Polyethylene (Foam)1.45 mm0.03 mm
Color Chart
NumberColor
Pair 1Black & Red
Outer Shield
TypeMaterialMaterial Trade NameCoverage [%]Drainwire MaterialDrainwire AWGDrainwire Construction n x D
TapeBi-Laminate (Alum+Poly)Beldfoil®100%TC - Tinned Copper247x0.20 mm
Outer Jacket
MaterialNominal DiameterDiameter +/- Tolerance
LSZH - Low Smoke Zero Halogen (Flame Retardant)3.50 mm0.10 mm

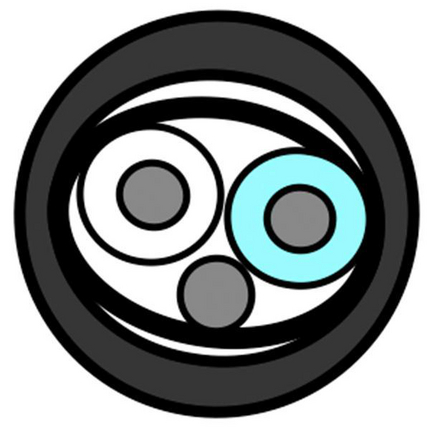

Construction and Dimensions

Cabling
Description
1 pair

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR
86.0 Ohm/km
Capacitance
Nom. Capacitance Conductor to Conductor
40 pF/m
Impedance
Frequency [MHz]Nominal Characteristic ImpedanceNominal Characteristic Tolerance
0.1 - 6110 Ohm+/- 15 Ohm
Delay
Nominal Velocity of Propagation (VP) [%]
80%

Temperature Range

Other Temp Range: -30 to +70 °C

Mechanical Characteristics

Min. Bend Radius During Installation: 35 mm
Min. Bend Radius During Operation: 52.5 mm

Standards

CPR Euroclass: Dca-s2,d1,a1

Applicable Environmental and Other Programs

Environmental Space: Indoor - Euroclass Dca

Flammability, LS0H, Toxicity Testing

IEC Flammability: IEC 60332-1-2
IEC 60754-1 - Halogen Amount: Zero
IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity: 2.5 µS/mm
IEC 60754-2 - Halogen Acid Gas Amount - Min. pH: 4.3

Related Part Numbers

Variants
Item #ColorPut-Up TypeLengthEAN
70075.01305BlackReel305 m8719605010681
70075.01500BlackReel500 m8719605010698

History

Update and Revision: Revision Number: 0.182 Revision Date: 02-15-2024
Date: 2014-09-16
