70073 - 10 Pair AES/EBU, 26AWG, ISTP, LSZH


Digital Audio 10 Pair AES/EBU, 26AWG/0.14mm², ISTP, LSZH

Product Overview

Suitable Applications: Digital multi-modulation cable used in professional studios for the transmission of analogue and digital audio signals.; Designed to meet the requirements of the AES/EBU specification

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialCross SectionConstruction n x DNo. of Pairs
267x34BC-OFHC - Bare Copper, Oxygen Free High Conductivity0.14 mm²7x0.15 mm10
Conductor Count: 20
Total Number of Pairs: 10
Insulation
MaterialNominal DiameterDiameter +/- Tolerance
PE - Polyethylene (Foam)1.10 mm0.03 mm
Color Chart
NumberColor
Pair 10White & Blue
Inner Shield Material
TypeMaterialMaterial Trade NameCoverage [%]Drainwire MaterialDrainwire AWG
TapeAlum / PolyBeldfoil®100%Stranded tinned copper26
Table Notes: Aluminum inside
Inner Jacket Material
MaterialNominal DiameterDiameter +/- Tolerance
LSZH - Low Smoke Zero Halogen flame retardant2.90 mm0.1 mm
Table Notes: Elements are numbered for identification
Outer Shield Material
TypeMaterialCoverage [%]Drainwire MaterialDrainwire AWGDrainwire Construction n x D
TapeAlum / Poly100%TC - Tinned Copper26Stranded
Outer Jacket Material
MaterialNominal DiameterNominal Wall Thickness
LSZH - Low Smoke Zero Halogen flame retardant13.6 mm1.30 mm

Construction and Dimensions

Cabling
DescriptionFiller

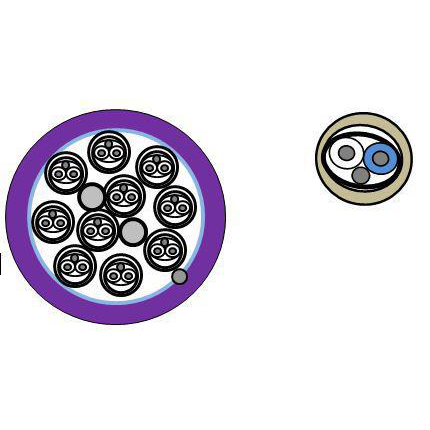

10 Pairs + Stranded tinned copper drainwire(7x0.16)(AWG 26) + 2 FillersCotton (2x)

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR
134 Ohm/km
Capacitance
Nom. Capacitance Conductor to Conductor
40 pF/m
Impedance
Nominal Characteristic ImpedanceNominal Characteristic Tolerance
110 Ohm+/- 15 Ohm
Delay
Nominal Velocity of Propagation (VP) [%]
80%

Temperature Range

Other Temp Range: -30-+70 °C

Mechanical Characteristics

Min Bend Radius During Installation: 136 mm
Min Bend Radius During Operation: 204 mm

Standards

CPR Euroclass: Eca

Applicable Environmental and Other Programs

Environmental Space: Indoor - Euroclass Eca
EU RoHS Compliance Date (yyyy-mm-dd): 2015-07-15

Flammability, LS0H, Toxicity Testing

IEC Flammability: IEC 60332-1
LOI of Jacket: 34 %
IEC 60754-1 (EN50267-1)- Halogen Amount: Zero

Part Number

Variants
Item #ColorPutup TypeLengthEAN
70073.01500BlueReel500 m8719605128560
70073.02500Creme Similar RAL 9001Reel500 m8719605128577
70073.00500VioletReel500 m8719605128553

History

Update and Revision: Revision Number: 0.110 Revision Date: 04-08-2020
Date: 2015-07-15
No accessories are available for this product
