70066CH - 8 x QUAD SNAKE, 26AWG, FRNC/LSZH-C


8 x QUAD SNAKE, 26AWG, FRNC/LSZH-C

Product Overview

Suitable Applications: 8 fold star-quad FRNC microphone cable

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialConstruction n x D
26StrandedBC - Bare Copper19x0.10 mm
Conductor Count: 32
Insulation
TypeMaterialNominal DiameterDiameter +/- Tolerance
InsulationPE - Polyethylene1.15 mm0.05 mm
Color Chart
NumberColor
Quad 1White & Blue & White/Blue & Blue/White
Table Notes: With ringmarking
Color Chart 2
NumberColor
Quad 11
Quad 22
Quad 33
Quad 44
Quad 55
Quad 66
Quad 77
Quad 88
Inner Shield Material
TypeMaterialCoverage [%]Drainwire MaterialDrainwire AWGDrainwire Construction n x DDrainwire Position
TapeBi-Laminate (Alum+Poly)100%Stranded tinned copper267x0.16 mmUnder shielding foil
Table Notes: Aluminum inside
Inner Jacket Material
MaterialColorNominal Diameter
LSZH - Low Smoke Zero Halogen (Flame Retardant)Gray (like RAL 7001)3.70 mm
Table Notes: Elements are numbered 1-8 for identification
Outer Jacket Material
MaterialNominal DiameterDiameter +/- ToleranceNominal Wall Thickness
LSZH - Low Smoke Zero Halogen (Flame Retardant)16.70 mm0.50 mm1.50 mm

Construction and Dimensions

Cabling
Description

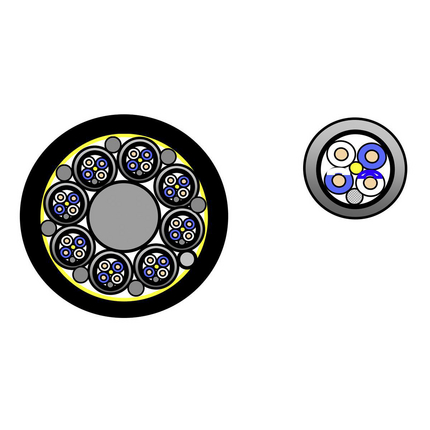

1 center filler + 8 quads + 7 fillers + 1 stranded tinned copper drainwire (16AWG) (26x0.254 mm) covered with a non-woven foil

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR
110.0 Ohm/km
Capacitance
Nom. Capacitance Conductor to ConductorNom. Capacitance Conductor to Shield
164 pF/m222 pF/m
Voltage
Voltage Rating [V]
300 V

Temperature Range

Other Temp Range: -30 to +70 °C

Mechanical Characteristics

Min Bend Radius During Installation: 167 mm
Min Bend Radius During Operation: 250.5 mm

Standards

CPR Euroclass: Dca-s2,d2,a1

Applicable Environmental and Other Programs

Environmental Space: Indoor - Euroclass Dca
EU RoHS Compliance Date (yyyy-mm-dd): 2005-01-01

Flammability, LS0H, Toxicity Testing

IEC Flammability: IEC 60332-1-2 and IEC 60332-3-24
IEC 60754-1 (EN50267-1)- Halogen Amount: Zero
IEC 60754-2 (EN50267-2)- Halogen Acid Gas Amount - Max. Conductivity: 2.5 µS/mm
IEC 60754-2 (EN50267-2)- Halogen Acid Gas Amount - Min. pH: 4.3

Part Number

Variants
Item #ColorPutup TypeLengthEAN
70066CH.00100BlackReel100 m8719605155641
70066CH.00305BlackReel305 m8719605010612
70066CH.00500BlackReel500 m8719605010629
70066CH.001000BlackReel1,000 m8719605010605

History

Update and Revision: Revision Number: 0.137 Revision Date: 08-25-2020
Date: 2005-01-01
No accessories are available for this product
