70064CH - 2 x QUAD SNAKE, 26AWG, LSZH-C


AUDIO 2 x QUAD SNAKE, 26AWG/0.14mm², LSZH-C

Product Overview

Suitable Applications: 2 fold star-quad FRNC microphone cable

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialConstruction n x D
26StrandedBC - Bare Copper19x0.10 mm
Conductor Count: 8
Insulation
TypeMaterialNominal DiameterDiameter +/- Tolerance
InsulationPE - Polyethylene1.15 mm0.05 mm
Color Chart
NumberColor
Quad 1White & Blue & White/Blue & Blue/White
Color Chart1, Table Note: With ringmarking
Color Chart 2
NumberColor
Quad 11
Quad 22
Inner Shield Material
TypeMaterialCoverage [%]Drainwire MaterialDrainwire AWGDrainwire Construction n x DDrainwire Position
TapeAlum / Poly100 %Stranded tinned copper267x0.16 mmUnder shielding foil
InnerShield, Table Note: Aluminum inside
Inner Jacket Material
MaterialColorNominal Diameter
LSZH - Low Smoke Zero Halogen flame retardantGray (like RAL 7001)3.70 mm
InnerJacket, Table Note: Elements are numbered 1-2 for identification
Outer Jacket Material
MaterialNominal DiameterDiameter +/- ToleranceNominal Wall Thickness
LSZH - Low Smoke Zero Halogen flame retardant10.00 mm0.50 mm1.30 mm

Construction and Dimensions

Cabling
Description

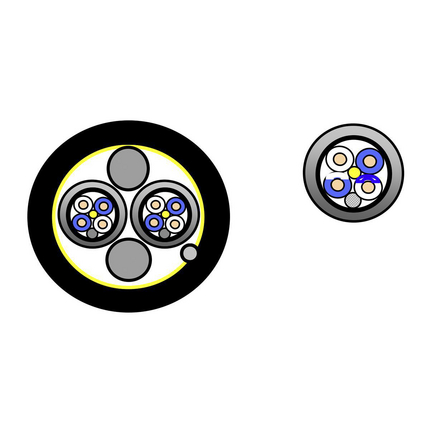

2 fillers + 2 quads + 1 stranded tinned copper drainwire (16AWG) (26x0.254 mm) covered with a non-woven foil

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR
110.0 Ohm/km
Capacitance
Nom. Capacitance Conductor to ConductorNom. Capacitance Conductor to Shield
164 pF/m222 pF/m
Voltage
Voltage Rating [V]
300 V

Temperature Range

Other Temp Range: -30 to +70 °C

Mechanical Characteristics

Min Bend Radius During Installation: 100 mm
Min Bend Radius During Operation: 150 mm

Applicable Environmental and Other Programs

Environmental Space: Indoor
EU RoHS Compliance Date (yyyy-mm-dd): 2005-01-01

Flammability, LS0H, Toxicity Testing

ISO/IEC Flammability: IEC 60332-3-24

Part Number

Variants
Item #ColorPutup TypeLengthEAN
70064CH.00305BlackReel305 m8719605010551
70064CH.00500BlackReel500 m8719605010568

History

Update and Revision: Revision Number: 0.127 Revision Date: 04-08-2020
Date: 2005-01-01
No accessories are available for this product
