70063CH - 1 x QUAD SNAKE, 26AWG, LSZH-C


AUDIO 1 x QUAD SNAKE, 26AWG/0.14mm², LSZH-C

Product Overview

Suitable Applications: Single star-quad FRNC/LSZH microphone cable

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Quads
2619x34BC - Bare Copper1
Conductor Count: 4
Total Number of Pairs: 2
Insulation
MaterialNominal DiameterDiameter +/- Tolerance
PE - Polyethylene1.15 mm0.05 mm
Color Chart
NumberColor
Quad 1White & Blue & White/Blue & Blue/White
Table Notes: With ringmarking
Outer Shield Material
TypeMaterialCoverage [%]Drainwire MaterialDrainwire AWGDrainwire Construction n x DDrainwire Position
TapeBi-Laminate (Alum+Poly)100%TC - Tinned Copper26StrandedUnder shielding foil
Outer Jacket Material
MaterialNominal Diameter
LSZH - Low Smoke Zero Halogen (Flame Retardant)4.7 mm

Construction and Dimensions

Cabling
Description

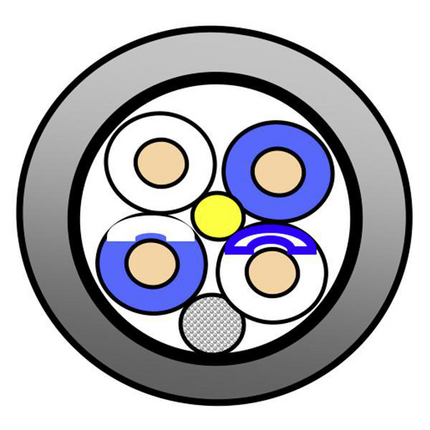

1 quad + drainwire stranded tinnend copper (AWG26)(7x0.16mm) + Strength member
Strength Member
Material
Kevlar

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR
110 Ohm/km
Capacitance
Nom. Capacitance Conductor to ConductorNom. Capacitance Conductor to Shield
164 pF/m164 pF/m

Temperature Range

Other Temp Range: -30-+70 °C

Standards

CPR Euroclass: Eca

Applicable Environmental and Other Programs

Environmental Space: Indoor - Euroclass Eca
EU RoHS Compliance Date (yyyy-mm-dd): 2016-04-14

Flammability, LS0H, Toxicity Testing

IEC Flammability: IEC 60332-1-2 and IEC 60332-3-24

Part Number

Variants
Item #ColorPutup TypeLengthEAN
70063CH.00100BlackReel100 m8719605142290
70063CH.00500BlackReel500 m8719605010544

History

Update and Revision: Revision Number: 0.104 Revision Date: 09-30-2020
Date: 2016-04-14
