70058CH - 4 PAIR AES/EBU, 24AWG, ISTP, LSZH-C


DIGITAL AUDIO 4 PAIR AES/EBU, 24AWG/0.22mm², ISTP, LSZH-C

Product Overview

Suitable Applications: Digital multi-modulation cable; Used in professional studios; For the transmission of analogue and digital audio signals; Designed to meet the requirements of the AES/EBU specification

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialCross SectionConstruction n x D
247x32BC-OFHC - Bare Copper, Oxygen Free High Conductivity0.22 mm²7x0.20 mm
Conductor Count: 8
Total Number of Pairs: 4
Insulation
TypeMaterialNominal DiameterDiameter +/- Tolerance
InsulationPE - Polyethylene (Foam)1.45 mm0.03 mm
Color Chart
NumberColor
Pair 1 t/m 4White & Blue
Inner Shield Material
MaterialMaterial Trade NameCoverage [%]Drainwire MaterialDrainwire AWGDrainwire Construction n x D
Alum / PolyBeldfoil®100 %Stranded tinned copper247x0.20 mm
InnerShield, Table Note: Aluminum inside
Inner Jacket Material
MaterialNominal DiameterDiameter +/- Tolerance
LSZH - Low Smoke Zero Halogen flame retardant3.50 mm0.10 mm
InnerJacket, Table Note: Elements are numbered for identification
Outer Shield Material
TypeMaterialCoverage [%]Drainwire MaterialDrainwire AWGDrainwire Construction n x D
TapeAlum / Poly100 %TC - Tinned Copper247x0.20 mm
Outer Jacket Material
MaterialNominal DiameterNominal Wall Thickness
LSZH - Low Smoke Zero Halogen flame retardant11.00 mm1.20 mm

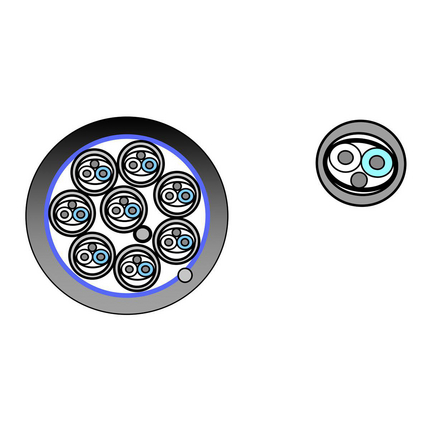

Construction and Dimensions

Cabling
DescriptionFiller
1 filler + 4 pairsPolypropylene

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR
86.0 Ohm/km
Capacitance
Nom. Capacitance Conductor to Conductor
40 pF/m
Impedance
Frequency [MHz]Nominal Characteristic ImpedanceNominal Characteristic Tolerance
0.1 - 6110 Ohm+/- 15 Ohm
Delay
Nominal Velocity of Propagation (VP) [%]
80 %

Temperature Range

Other Temp Range: -30 to +70 °C

Mechanical Characteristics

Min Bend Radius During Installation: 110 mm
Min Bend Radius During Operation: 165 mm

Standards

CPR Euroclass: Cca-s1,d1,a1

Applicable Environmental and Other Programs

Environmental Space: Indoor - Euroclass Cca
EU RoHS Compliance Date (yyyy-mm-dd): 2005-01-01

Flammability, LS0H, Toxicity Testing

ISO/IEC Flammability: IEC 60332-1-2 and IEC 60332-3-24
LOI of Jacket: Min. 45 %
Amount of Halogen acc. to IEC 60754-1 & EN50267-1: Zero

Part Number

Variants
Item #ColorPutup TypeLengthEAN
70058CH.00M30VioletReel30 m8719605010384
70058CH.00M50VioletReel50 m8719605010391
70058CH.009999VioletReel400 m8719605010377
70058CH.00500VioletReel500 m8719605010360
70058CH.001000VioletReel1,000 m8719605010353

History

Update and Revision: Revision Number: 0.143 Revision Date: 04-08-2020
Date: 2005-01-01
