70056 - 16 PAIR AES/EBU, 26AWG, ISTP, LSZH


DIGITAL AUDIO 16 PAIR AES/EBU, 26AWG/0.14mm², ISTP, LSZH

Product Overview

Suitable Applications: Digital multi-modulation cable used in professional studios for the transmission of analogue and digital audio signals; Designed to meet the requirements of the AES/EBU specification

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialCross SectionConstruction n x D
267x34BC-OFHC - Bare Copper, Oxygen Free High Conductivity0.14 mm²7x0.15 mm
Conductor Count: 32
Total Number of Pairs: 16
Insulation
TypeMaterialNominal DiameterDiameter +/- Tolerance
InsulationPE - Polyethylene (Foam)1.10 mm0.03 mm
Color Chart
NumberColor
Pair 1 t/m 16White & Blue
Inner Shield Material
MaterialMaterial Trade NameCoverage [%]Drainwire MaterialDrainwire AWGDrainwire Construction n x D
Alum / PolyBeldfoil®100 %Stranded tinned copper267x0.16 mm
InnerShield, Table Note: Aluminum inside
Inner Jacket Material
MaterialNominal DiameterDiameter +/- Tolerance
LSZH - Low Smoke Zero Halogen flame retardant2.90 mm0.10 mm
InnerJacket, Table Note: Elements are numbered for identification
Outer Shield Material
TypeMaterialCoverage [%]Drainwire MaterialDrainwire AWGDrainwire Construction n x D
TapeAlum / Poly100 %TC - Tinned Copper267x0.16 mm
Outer Jacket Material
MaterialNominal DiameterNominal Wall Thickness
LSZH - Low Smoke Zero Halogen flame retardant16.50 mm1.30 mm

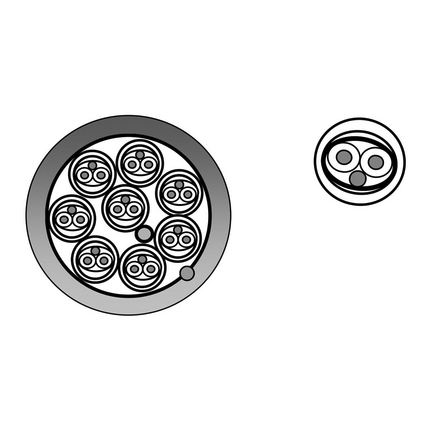

Construction and Dimensions

Cabling
DescriptionFiller
1 filler + 16 pairsPolypropylene

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR
134.0 Ohm/km
Capacitance
Nom. Capacitance Conductor to Conductor
40 pF/m
Impedance
Frequency [MHz]Nominal Characteristic ImpedanceNominal Characteristic Tolerance
0.1 - 6110 Ohm+/- 15 Ohm
Delay
Nominal Velocity of Propagation (VP) [%]
80 %

Temperature Range

Other Temp Range: -30 to +70 °C

Mechanical Characteristics

Min Bend Radius During Installation: 165 mm
Min Bend Radius During Operation: 247.5 mm

Applicable Environmental and Other Programs

Environmental Space: Indoor
EU RoHS Compliance Date (yyyy-mm-dd): 2005-01-01

Flammability, LS0H, Toxicity Testing

ISO/IEC Flammability: IEC 60332-1-2
LOI of Jacket: Min. 34 %
Amount of Halogen acc. to IEC 60754-1 & EN50267-1: Zero

Part Number

Variants
Item #ColorPutup TypeLengthEAN
70056.00100VioletReel100 m8719605010278
70056.00500VioletReel500 m8719605010285

History

Update and Revision: Revision Number: 0.146 Revision Date: 04-08-2020
Date: 2005-01-01
