70055CH - 12 PAIR AES/EBU, 26AWG, ISTP, LSZH-C


DIGITAL AUDIO 12 PAIR AES/EBU, 26AWG/0.14mm², ISTP, LSZH-C

Product Overview

Suitable Applications: Digital multi-modulation cable used in professional studios for the transmission of analogue and digital audio signals; Designed to meet the requirements of the AES/EBU specification; Resistance to flame propagation according to IEC 60332-3-24

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialCross SectionConstruction n x D
267x34BC-OFHC - Oxygen-Free Bare Copper (High Conductivity)0.14 mm²7x0.15 mm
Conductor Count: 24
Total Number of Pairs: 12
Insulation
TypeMaterialNominal DiameterDiameter +/- Tolerance
InsulationPE - Polyethylene (Foam)1.10 mm0.03 mm
Color Chart
NumberColor
Pair 1 t/m 12White & Blue
Inner Shield Material
MaterialMaterial Trade NameCoverage [%]Drainwire MaterialDrainwire AWGDrainwire Construction n x D
Bi-Laminate (Alum+Poly)Beldfoil®100%Stranded tinned copper267x0.16 mm
Table Notes: Aluminum inside
Inner Jacket Material
MaterialNominal DiameterDiameter +/- Tolerance
LSZH - Low Smoke Zero Halogen (Flame Retardant)2.90 mm0.10 mm
Table Notes: Elements are numbered for identification
Outer Shield Material
TypeMaterialCoverage [%]Drainwire MaterialDrainwire AWGDrainwire Construction n x D
TapeBi-Laminate (Alum+Poly)100%TC - Tinned Copper267x0.16 mm
Outer Jacket Material
MaterialNominal DiameterNominal Wall Thickness
LSZH - Low Smoke Zero Halogen (Flame Retardant)14.70 mm1.30 mm

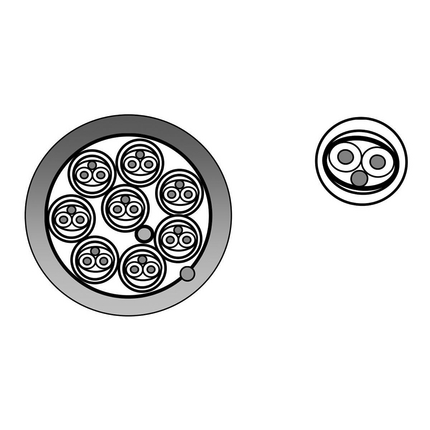

Construction and Dimensions

Cabling
DescriptionFiller
3 fillers + 12 pairsCotton (3x)
Min Elongation at Breakof Jacket: 125 %
Min Tensile Strength of Jacket: 9 MPa

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR
134.0 Ohm/km
Capacitance
Nom. Capacitance Conductor to Conductor
40 pF/m
Impedance
Frequency [MHz]Nominal Characteristic ImpedanceNominal Characteristic Tolerance
0.1 - 6110 Ohm+/- 15 Ohm

Temperature Range

Other Temp Range: -30 to +70 °C

Mechanical Characteristics

Min Bend Radius During Installation: 147 mm
Min Bend Radius During Operation: 220.5 mm

Standards

CENELEC Compliance: EN 50290-2-20

Applicable Environmental and Other Programs

Environmental Space: Indoor
EU RoHS Compliance Date (yyyy-mm-dd): 2013-12-19

Flammability, LS0H, Toxicity Testing

IEC Flammability: IEC 60332-3-24
IEC 60754-1 (EN50267-1)- Halogen Amount: Zero
IEC 60754-2 (EN50267-2)- Halogen Acid Gas Amount - Max. Conductivity: 2.5 µS/mm
IEC 60754-2 (EN50267-2)- Halogen Acid Gas Amount - Min. pH: 4.3
IEC 61034-2 (EN 61034-2) (VDE 0482-1034) - Smoke Density Min. Transmittance: IEC 61034-2

Part Number

Variants
Item #ColorPutup TypeLengthEAN
70055CH.00500GreenReel500 m8719605010261

History

Update and Revision: Revision Number: 0.149 Revision Date: 09-30-2020
Date: 2013-12-19
