70053CH - 4 PAIR AES/EBU, 26AWG, ISTP, LSZH-C


DIGITAL AUDIO 4 PAIR AES/EBU, 26AWG/0.14mm², ISTP, LSZH-C

Product Overview

Environmental Space: Indoor
Suitable Applications: Digital multi-modulation cable used in professional studios for the transmission of analogue and digital audio signals; Designed to meet the requirements of the AES/EBU specification; Resistance to flame propagation according to IEC 60332-3-24

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialCross SectionConstruction n x D
267x34BOFC - Bare Oxygen free Copper0.14 mm²7x0.15 mm
Conductor Count: 8
Total Number of Pairs: 4
Conductor Size: 26 AWG
Insulation
TypeMaterialNominal DiameterDiameter +/- Tolerance
InsulationFPE - Foamed Polyethylene1.10 mm0.03 mm
Color Chart
NumberColor
Pair 1 t/m 4White & Blue
Inner Shield Material
MaterialMaterial Trade NameCoverage [%]Drainwire MaterialDrainwire AWGDrainwire Construction n x D
Aluminum / PolyesterBeldfoil®100 %Stranded tinned copper267x0.16 mm
InnerShield, Table Note: Aluminum inside
Inner Jacket Material
MaterialNominal DiameterDiameter +/- Tolerance
FRNC / LSZH2.90 mm0.10 mm
InnerJacket, Table Note: Elements are numbered for identification
Outer Shield Material
TypeMaterialCoverage [%]Drainwire MaterialDrainwire AWGDrainwire Construction n x D
FoilAluminum/Polyester100 %Stranded tinned copper267x0.16 mm
Outer Jacket Material
MaterialNominal DiameterNominal Wall Thickness
LSZH / FRNC9.80 mm1.20 mm

Construction and Dimensions

Cabling
DescriptionFiller

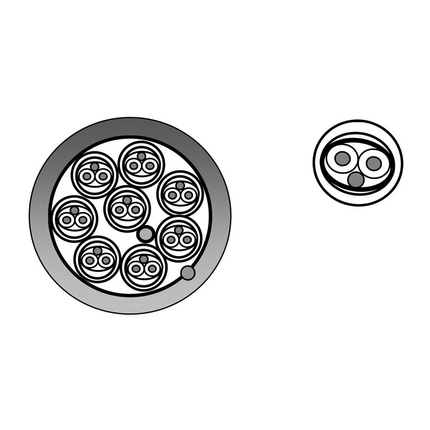

1 filler + 4 pairsPolypropylene
Min Elongation at Breakof Jacket: 125 %
Min Tensile Strength of Jacket: 9 MPa

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR
134.0 Ohm/km
Capacitance
Nom. Capacitance Conductor to Conductor
40 pF/m
Impedance
Frequency [MHz]Nominal Characteristic ImpedanceNominal Characteristic Tolerance
0.1 - 6110 Ohm+/- 15 Ohm
Delay
Nominal Velocity of Propagation (VP) [%]
80 %

Temperature Range

Other Temp Range: -30 to +70 °C

Mechanical Characteristics

Min Bend Radius During Installation: 98 mm
Min Bend Radius During Operation: 147 mm

Standards

CENELEC Compliance: EN 50290-2-20

Applicable Environmental and Other Programs

EU RoHS Compliance Date (yyyy-mm-dd): 2013-12-18

Flammability, LS0H, Toxicity Testing

ISO/IEC Flammability: IEC 60332-3-24
Amount of Halogen acc. to IEC 60754-1 & EN50267-1: Zero

Part Number

Variants
Item #ColorLength
70053CH.00500Violet500 m
70053CH.00200Violet200 m

History

Update and Revision: Revision Number: 0.127 Revision Date: 07-11-2019
Date: 2013-12-18
No accessories are available for this product
