70051 - 1 PAIR AES/EBU, 26AWG, ISTP, LSZH


DIGITAL AUDIO 1 PAIR AES/EBU, 26AWG/0.14mm², ISTP, LSZH

Product Overview

Suitable Applications: Digital multi-modulation cable; Used in professional studios; For the transmission of analogue and digital audio signals; Designed to meet the requirements of the AES/EBU specification

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialCross SectionConstruction n x D
267x34BC-OFHC - Oxygen-Free Bare Copper (High Conductivity)0.14 mm²7x0.15 mm
Conductor Count: 2
Total Number of Pairs: 1
Insulation
TypeMaterialNominal DiameterDiameter +/- Tolerance
InsulationPE - Polyethylene (Foam)1.10 mm0.03 mm
Color Chart
NumberColor
Pair 1White & Blue
Outer Shield Material
TypeMaterialMaterial Trade NameCoverage [%]Drainwire MaterialDrainwire AWGDrainwire Construction n x D
TapeBi-Laminate (Alum+Poly)Beldfoil®100%TC - Tinned Copper267x0.16 mm
Outer Jacket Material
MaterialNominal DiameterDiameter +/- Tolerance
LSZH - Low Smoke Zero Halogen (Flame Retardant)3.90 mm0.20 mm

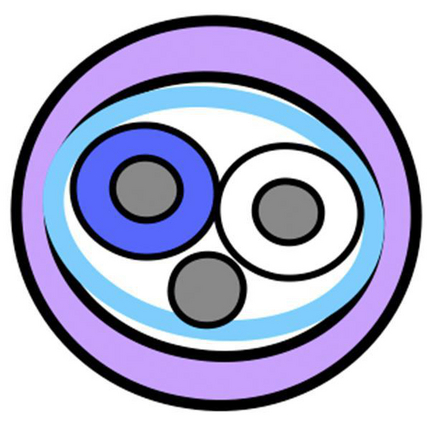

Construction and Dimensions

Cabling
Description
1 pair

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR
134.0 Ohm/km
Capacitance
Nom. Capacitance Conductor to Conductor
40 pF/m
Impedance
Frequency [MHz]Nominal Characteristic ImpedanceNominal Characteristic Tolerance
0.1 - 6110 Ohm+/- 15 Ohm

Temperature Range

Other Temp Range: -30 to +70 °C

Mechanical Characteristics

Min Bend Radius During Installation: 39 mm
Min Setting Radius: 19.5 mm

Standards

CPR Euroclass: Fca

Applicable Environmental and Other Programs

Environmental Space: Indoor
EU RoHS Compliance Date (yyyy-mm-dd): 2005-01-01

Flammability, LS0H, Toxicity Testing

IEC Flammability: IEC 60332-1-2
LOI of Jacket: Min. 34 %
IEC 60754-1 (EN50267-1)- Halogen Amount: Zero
IEC 60754-2 (EN50267-2)- Halogen Acid Gas Amount - Max. Conductivity: 2.5 µS/mm
IEC 60754-2 (EN50267-2)- Halogen Acid Gas Amount - Min. pH: 4.3

Part Number

Variants
Item #ColorPutup TypeLengthEAN
70051.02500BlackReel500 m8719605161857
70051.011000GrayReel1,000 m8719605010063
70051.00100PurpleReel100 m8719605010049
70051.00500PurpleReel500 m8719605010056

History

Update and Revision: Revision Number: 0.150 Revision Date: 09-30-2020
Date: 2005-01-01
