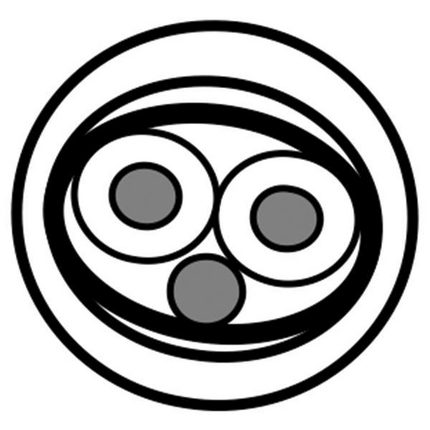

(4)DIGITAL AUDIO 1 PAIR AES/EBU, 24AWG/0.22mm², ISTP, LSZH
| Suitable Applications: | 1-pair 24AWG halogen-free single pair cable; For digital audio |
| AWG | Stranding | Material | Construction n x D |
|---|---|---|---|
| 24 | 7x32 | BC-OFHC - Oxygen-Free Bare Copper (High Conductivity) | 7x0.20 mm |
| Conductor Count: | 2 |
| Total Number of Pairs: | 1 |
| Type | Material | Nominal Diameter | Diameter +/- Tolerance |
|---|---|---|---|
| Insulation | PE - Polyethylene (Foam) | 1.70 mm | 0.05 mm |
| Number | Color |
|---|---|
| Pair 1 | Red & Black |
| Type | Material | Coverage [%] | Drainwire Material | Drainwire AWG | Drainwire Construction n x D | Drainwire Position |
|---|---|---|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% | TC - Tinned Copper | 24 | 7x0.20 mm | Under shielding foil |
| Material | Nominal Diameter | Diameter +/- Tolerance |
|---|---|---|
| LSZH - Low Smoke Zero Halogen (Flame Retardant) | 5.00 mm | 0.10 mm |
| Description |
|---|
| 1 pair |
| Nominal Conductor DCR |
|---|
| 86.0 Ohm/km |
| Nom. Capacitance Conductor to Conductor |
|---|
| 36 pF/m |
| Frequency [MHz] | Nominal Characteristic Impedance | Nominal Characteristic Tolerance |
|---|---|---|
| 0.1 - 6 | 110 Ohm | +/- 15 Ohm |
| Nominal Velocity of Propagation (VP) [%] |
|---|
| 76% |
| Other Temp Range: | -30 to +70 °C |
| Max. Pull Tension: | 70 N |
| Min. Bend Radius During Installation: | 50 mm |
| Min. Bend Radius During Operation: | 75 mm |
| CPR Euroclass: | Dca-s1,d1,a1 |
| Environmental Space: | Indoor - Euroclass Dca |
| IEC Flammability: | IEC 60332-1-2 |
| LOI of Jacket: | Min. 34 % |
| IEC 60754-1 - Halogen Amount: | Zero |
| IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity: | 2.5 µS/mm |
| IEC 60754-2 - Halogen Acid Gas Amount - Min. pH: | 4.3 |
| Item # | Color | Put-Up Type | Length | EAN |
|---|---|---|---|---|
| 70049.01500 | Gray | Reel | 500 m | 8719605009968 |
| 70049.00500 | Purple | Reel | 500 m | 8719605009944 |
| Update and Revision: | Revision Number: 0.187 Revision Date: 02-03-2025 |
