70045LW - Speaker Cable LSZH 2x1.5mm², CPR Cca.


Speaker Cable, 2 Conductor 1.5mm² (30 x 0.25mm) Oxygen-Free Bare Copper (High Conductivity), LSZH Insulation, LSZH Jacket, Flexible, CPR Euroclass Cca.

Product Overview

Suitable Applications: Speaker cable for use in indoor or outdoor applications

Physical Characteristics (Overall)

Conductor
StrandingMaterialCross SectionConstruction n x D
StrandedBC-OFHC - Oxygen-Free Bare Copper (High Conductivity)1.50 mm²30x0.25 mm
Conductor Count: 2
Insulation
TypeMaterialNominal DiameterDiameter +/- Tolerance
InsulationLSZH - Low Smoke Zero Halogen (Flame Retardant)2.30 mm0.07 mm
Color Chart
NumberColor
Wire 1Black
Wire 2Red
Outer Jacket
MaterialNominal DiameterDiameter +/- Tolerance
LSZH - Low Smoke Zero Halogen (Flame Retardant)6.80 mm0.25 mm
Table Notes: Flexible with Matte Finish

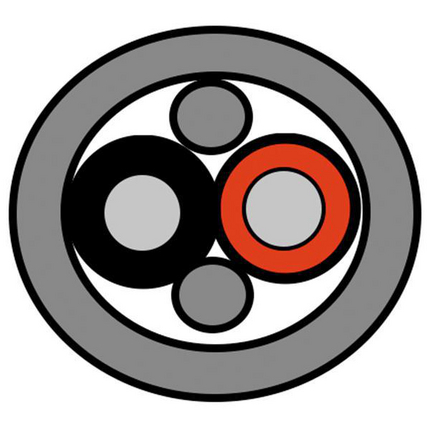

Construction and Dimensions

Cabling
Description
2 wires twisted

Electrical Characteristics

Conductor DCR
Max. Conductor DCR
13 Ohm/km
Min Insulation Resistance: 200 MOhm*km
Voltage
Voltage Rating [V]
300 V

Temperature Range

Storage Temperature Range: -30°C to +70°C
Operating Temp Range (Flexible Install): -5°C To +60°C
Operating Temp Range (Fixed Install): -30°C To +70°C

Mechanical Characteristics

Max. Pull Tension: 200 N

Standards

CPR Euroclass: Cca-s1,d1,a1

Applicable Environmental and Other Programs

Environmental Space: Indoor/Outdoor - Euroclass Cca

Flammability, LS0H, Toxicity Testing

IEC Flammability: IEC 60332-1-2
IEC 60754-1 - Halogen Amount: Zero
IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity: 2.5 µS/mm
IEC 60754-2 - Halogen Acid Gas Amount - Min. pH: 4.3

Related Part Numbers

Variants
Item #ColorPut-Up TypeLengthEAN
70045LW.00500BlackReel500 m8719605170378

History

Update and Revision: Revision Number: 0.62 Revision Date: 02-15-2024
Date: 2004-01-01
