70043 - AUDIO ANALOG 8 PAIR, 26AWG, LSZH


ANALOG AUDIO 8 PAIR, 26AWG/0.14mm², LSZH

Product Overview

Suitable Applications: Audio snake cable used in professional studios; For the transmission of analogue signals

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialCross SectionConstruction n x D
267x34BC-OFHC - Oxygen-Free Bare Copper (High Conductivity)0.14 mm²7x0.16 mm
Conductor Count: 16
Total Number of Pairs: 8
Insulation
TypeMaterialNominal DiameterDiameter +/- Tolerance
InsulationPE - Polyethylene1.00 mm0.03 mm
Color Chart
NumberColor
Pair 1 t/m 8White & Red
Inner Shield Material
TypeMaterialMaterial Trade NameCoverage [%]Drainwire MaterialDrainwire AWGDrainwire Construction n x D
TapeBi-Laminate (Alum+Poly)Beldfoil®100%Stranded tinned copper267x0.16 mm
Table Notes: Aluminum inside
Inner Jacket Material
MaterialNominal DiameterDiameter +/- Tolerance
LSZH - Low Smoke Zero Halogen (Flame Retardant)2.80 mm0.10 mm
Table Notes: Elements are numbered for identification
Outer Shield Material
TypeMaterialCoverage [%]Drainwire MaterialDrainwire AWGDrainwire Construction n x D
TapeBi-Laminate (Alum+Poly)100%TC - Tinned Copper267x0.16 mm
Outer Jacket Material
MaterialNominal DiameterNominal Wall Thickness
LSZH - Low Smoke Zero Halogen (Flame Retardant)12.10 mm1.20 mm

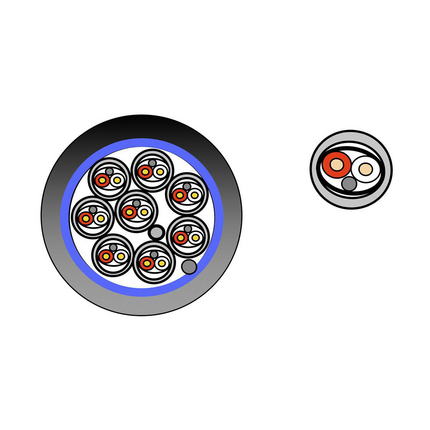

Construction and Dimensions

Cabling
DescriptionFiller
1 filler + 8 pairsPolypropylene

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR
134.0 Ohm/km
Capacitance
Nom. Capacitance Conductor to Conductor
90 pF/m

Temperature Range

Other Temp Range: -30 to +70 °C

Mechanical Characteristics

Min Bend Radius During Installation: 121 mm
Min Setting Radius: 60.5 mm

Standards

CPR Euroclass: Eca

Applicable Environmental and Other Programs

Environmental Space: Indoor - Euroclass Eca
EU RoHS Compliance Date (yyyy-mm-dd): 2005-01-01

Flammability, LS0H, Toxicity Testing

IEC Flammability: IEC 60332-1-2
LOI of Jacket: Min. 34 %
IEC 60754-1 (EN50267-1)- Halogen Amount: Zero
IEC 60754-2 (EN50267-2)- Halogen Acid Gas Amount - Max. Conductivity: 2.5 µS/mm
IEC 60754-2 (EN50267-2)- Halogen Acid Gas Amount - Min. pH: 4.3

Part Number

Variants
Item #ColorPutup TypeLengthEAN
70043.00100BlackReel100 m8719605009838
70043.00500BlackReel500 m8719605009845

History

Update and Revision: Revision Number: 0.148 Revision Date: 09-30-2020
Date: 2005-01-01
