70041 - AUDIO ANALOG 2 PAIR, 26AWG, LSZH


ANALOG AUDIO 2 PAIR, 26AWG/0.14mm², LSZH

Product Overview

Suitable Applications: Audio snake cable used in professional studios; For the transmission of analogue signals

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialCross SectionConstruction n x D
267x34BC-OFHC - Bare Copper, Oxygen Free High Conductivity0.14 mm²7x0.16 mm
Conductor Count: 4
Total Number of Pairs: 2
Insulation
TypeMaterialNominal DiameterDiameter +/- Tolerance
InsulationPE - Polyethylene1.00 mm0.03 mm
Color Chart
NumberColor
Pair 1 t/m 2White & Red
Inner Shield Material
TypeMaterialMaterial Trade NameCoverage [%]Drainwire MaterialDrainwire AWGDrainwire Construction n x D
TapeAlum / PolyBeldfoil®100 %Stranded tinned copper267x0.16 mm
InnerShield, Table Note: Aluminum inside
Inner Jacket Material
MaterialNominal DiameterDiameter +/- Tolerance
LSZH - Low Smoke Zero Halogen flame retardant2.80 mm0.10 mm
InnerJacket, Table Note: Elements are numbered for identification
Outer Shield Material
TypeMaterialCoverage [%]Drainwire MaterialDrainwire AWGDrainwire Construction n x D
TapeAlum / Poly100 %TC - Tinned Copper267x0.16 mm
Outer Jacket Material
MaterialNominal DiameterNominal Wall Thickness
LSZH - Low Smoke Zero Halogen flame retardant8.00 mm1.10 mm

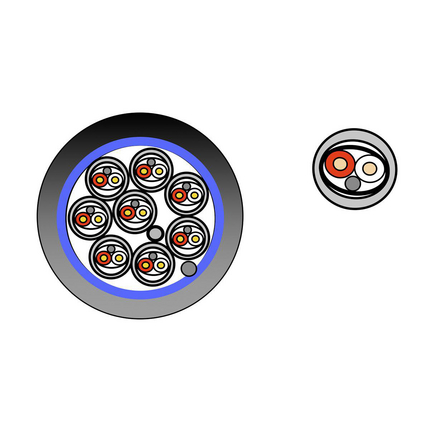

Construction and Dimensions

Cabling
DescriptionFiller
2 fillers + 2 pairsPolypropylene (2x)

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR
134.0 Ohm/km
Capacitance
Nom. Capacitance Conductor to Conductor
90 pF/m
Delay
Nominal Velocity of Propagation (VP) [%]
66 %

Temperature Range

Other Temp Range: -30 to +70 °C

Mechanical Characteristics

Min Bend Radius During Installation: 80 mm
Min Setting Radius: 40 mm

Applicable Environmental and Other Programs

Environmental Space: Indoor
EU RoHS Compliance Date (yyyy-mm-dd): 2005-01-01

Flammability, LS0H, Toxicity Testing

ISO/IEC Flammability: IEC 60332-1-2
LOI of Jacket: Min. 34 %
Amount of Halogen acc. to IEC 60754-1 & EN50267-1: Zero

Part Number

Variants
Item #ColorPutup TypeLengthEAN
70041.00500BlackReel500 m8719605009807

History

Update and Revision: Revision Number: 0.146 Revision Date: 04-08-2020
Date: 2005-01-01
No accessories are available for this product
