70039 - AUDIO ANALOG 10 PAIR, 26AWG, LSZH


ANALOG AUDIO 10 PAIR, 26AWG/0.14mm², LSZH

Product Overview

Suitable Applications: Audio snake cable used in professional studios for the transmission of analogue signals

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Pairs
2626BC-OFHC - Bare Copper, Oxygen Free High Conductivity10
Conductor Count: 10
Insulation
MaterialNominal DiameterDiameter +/- Tolerance
PE - Polyethylene1 mm0.03 mm
Color Chart
NumberColor
Pairs 1 t/m 10White & Red
Inner Shield Material
TypeMaterialMaterial Trade NameCoverage [%]Drainwire MaterialDrainwire AWG
TapeAlum / PolyBeldfoil®100 %Stranded tinned copper16
Inner Jacket Material
MaterialNominal DiameterDiameter +/- Tolerance
LSZH - Low Smoke Zero Halogen flame retardant2.8 mm0.1 mm
InnerJacket, Table Note: Elements are numbered for identification
Outer Shield Material
TypeMaterialCoverage [%]Drainwire MaterialDrainwire AWGDrainwire Construction n x D
TapeAlum / Poly100 %TC - Tinned Copper26Stranded
Outer Jacket Material
MaterialNominal DiameterDiameter +/- ToleranceNominal Wall Thickness
LSZH - Low Smoke Zero Halogen flame retardant13 mm0.1 mm1.3 mm

Construction and Dimensions

Cabling
Description

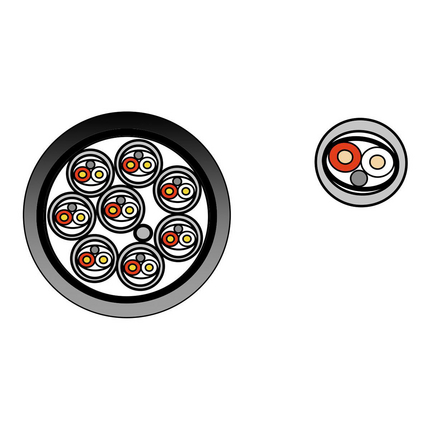

10 pairs + drainwire stranded tinnend copper (AWG26)(7x0.16mm) + Filler

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR
134 Ohm/km
Capacitance
Nom. Capacitance Conductor to Conductor
90 pF/m
Delay
Nominal Velocity of Propagation (VP) [%]
66 %

Temperature Range

Other Temp Range: -30-+70 °C

Applicable Environmental and Other Programs

Environmental Space: Indoor
EU RoHS Compliance Date (yyyy-mm-dd): 2014-09-19

Flammability, LS0H, Toxicity Testing

ISO/IEC Flammability: IEC 60332-1
LOI of Jacket: 34 %
Amount of Halogen acc. to IEC 60754-1 & EN50267-1: Zero

Part Number

Variants
Item #ColorPutup TypeLengthEAN
70039.00500BlackReel500 m8719605009777
70039.01500GrayReel500 m8719605185778

History

Update and Revision: Revision Number: 0.94 Revision Date: 04-08-2020
Date: 2014-09-19
