70037 - AUDIO ANALOG 40 PAIR 26AWG, BRAID PVC


ANALOG AUDIO 40 PAIR 26AWG/0.14mm², BRAID PVC

Product Overview

Suitable Applications: Audio snake cable used in professional studios; For the transmission of analogue signals

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialCross SectionConstruction n x D
267x34BC-OFHC - Bare Copper, Oxygen Free High Conductivity0.14 mm²7x0.16 mm
Conductor Count: 80
Total Number of Pairs: 40
Insulation
TypeMaterialNominal DiameterDiameter +/- Tolerance
InsulationPE - Polyethylene1.00 mm0.03 mm
Color Chart
NumberColor
Pair 1 t/m 40White & Red
Inner Shield Material
MaterialMaterial Trade NameCoverage [%]Drainwire MaterialDrainwire AWGDrainwire Construction n x D
Alum / PolyBeldfoil®100%Stranded tinned copper267x0.16 mm
Table Notes: Aluminum inside
Inner Jacket Material
MaterialNominal DiameterDiameter +/- Tolerance
PVC - Polyvinyl Chloride2.80 mm0.10 mm
Table Notes: Elements are numbered for identification
Outer Shield Material
TypeMaterialMin. Coverage [%]
TapePolyester
BraidTinned Copper (TC)80%
Outer Jacket Material
MaterialNominal DiameterNominal Wall Thickness
PVC - Polyvinyl Chloride24.40 mm1.50 mm

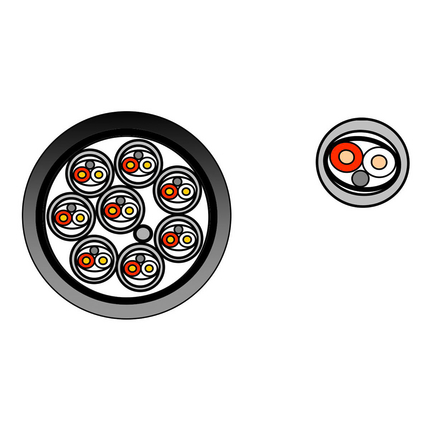

Construction and Dimensions

Cabling
DescriptionFiller
1 filler + 40 pairsCotton

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR
134.0 Ohm/km
Capacitance
Nom. Capacitance Conductor to Conductor
90 pF/m
Impedance
Nominal Characteristic Impedance
90 Ohm
Delay
Nominal Velocity of Propagation (VP) [%]
66%

Temperature Range

Other Temp Range: -40 to +70 °C

Mechanical Characteristics

Min Bend Radius During Installation: 244 mm
Min Setting Radius: 122 mm

Applicable Environmental and Other Programs

Environmental Space: Indoor
EU RoHS Compliance Date (yyyy-mm-dd): 2005-01-01

Part Number

Variants
Item #ColorPutup TypeLengthEAN
70037.00500BlackReel500 m8719605009722
70037.009999BlackReel500 m8719605009739

History

Update and Revision: Revision Number: 0.134 Revision Date: 04-08-2020
Date: 2005-01-01
