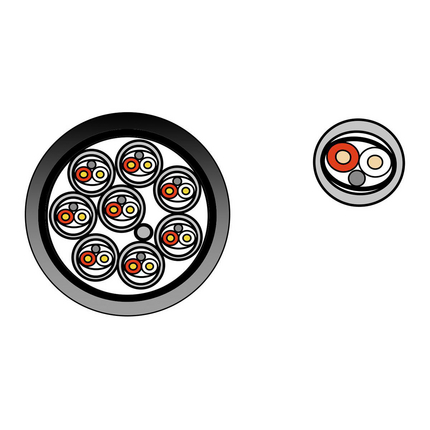

(109)ANALOG AUDIO 24 PAIR 26AWG/0.14mm², BRAID PVC
| Suitable Applications: | Audio snake cable used in professional studios; For the transmission of analogue signals |
| AWG | Stranding | Material | Cross Section | Construction n x D |
|---|---|---|---|---|
| 26 | 7x34 | BC-OFHC - Oxygen-Free Bare Copper (High Conductivity) | 0.14 mm² | 7x0.16 mm |
| Conductor Count: | 8 |
| Total Number of Pairs: | 4 |
| Type | Material | Nominal Diameter | Diameter +/- Tolerance |
|---|---|---|---|
| Insulation | PE - Polyethylene | 1.00 mm | 0.03 mm |
| Number | Color |
|---|---|
| Pair 1 t/m 24 | White & Red |
| Material | Material Trade Name | Coverage [%] | Drainwire Material | Drainwire AWG | Drainwire Construction n x D |
|---|---|---|---|---|---|
| Bi-Laminate (Alum+Poly) | Beldfoil® | 100% | Stranded tinned copper | 26 | 7x0.16 mm |
| Table Notes: | Aluminum inside |
| Material | Nominal Diameter | Diameter +/- Tolerance |
|---|---|---|
| PVC - Polyvinyl Chloride | 2.80 mm | 0.10 mm |
| Table Notes: | Elements are numbered for identification |
| Type | Material | Min. Coverage [%] |
|---|---|---|
| Tape | Polyester | |
| Braid | Tinned Copper (TC) | 80% |
| Material | Nominal Diameter | Nominal Wall Thickness |
|---|---|---|
| PVC - Polyvinyl Chloride | 19.50 mm | 1.30 mm |
| Description | Filler |
|---|---|
| 2 fillers + 24 pairs | Polypropylene (2x) |
| Nominal Conductor DCR |
|---|
| 134.0 Ohm/km |
| Nom. Capacitance Conductor to Conductor |
|---|
| 90 pF/m |
| Nominal Characteristic Impedance |
|---|
| 90 Ohm |
| Nominal Velocity of Propagation (VP) [%] |
|---|
| 66% |
| Other Temp Range: | -40 to +70 °C |
| Min. Bend Radius During Installation: | 195 mm |
| Min Setting Radius: | 97.5 mm |
| CPR Euroclass: | Eca |
| Environmental Space: | Indoor - Euroclass Eca |
| IEC Flammability: | IEC 60332-1-2 |
| Item # | Color | Put-Up Type | Length | EAN |
|---|---|---|---|---|
| 70036.00250 | Black | Reel | 250 m | 8719605171184 |
| Update and Revision: | Revision Number: 0.162 Revision Date: 12-22-2023 |
