70033 - AUDIO ANALOG 8 PAIR 26AWG, BRAID PVC


ANALOG AUDIO 8 PAIR 26AWG/0.14mm², BRAID PVC

Product Overview

Suitable Applications: Audio snake cable used in professional studios; For the transmission of analogue signals

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialCross SectionConstruction n x D
267x34BC-OFHC - Bare Copper, Oxygen Free High Conductivity0.14 mm²7x0.16 mm
Conductor Count: 16
Total Number of Pairs: 8
Insulation
TypeMaterialNominal DiameterDiameter +/- Tolerance
InsulationPE - Polyethylene1.00 mm0.03 mm
Color Chart
NumberColor
Pair 1 t/m 8White & Red
Inner Shield Material
MaterialMaterial Trade NameCoverage [%]Drainwire MaterialDrainwire AWGDrainwire Construction n x D
Alum / PolyBeldfoil®100%Stranded tinned copper267x0.16 mm
Table Notes: Aluminum inside
Inner Jacket Material
MaterialNominal DiameterDiameter +/- Tolerance
PVC - Polyvinyl Chloride2.80 mm0.10 mm
Table Notes: Elements are numbered for identification
Outer Shield Material
TypeMaterialMin. Coverage [%]
TapePolyester
BraidTinned Copper (TC)80%
Outer Jacket Material
MaterialNominal DiameterNominal Wall Thickness
PVC - Polyvinyl Chloride12.50 mm1.10 mm

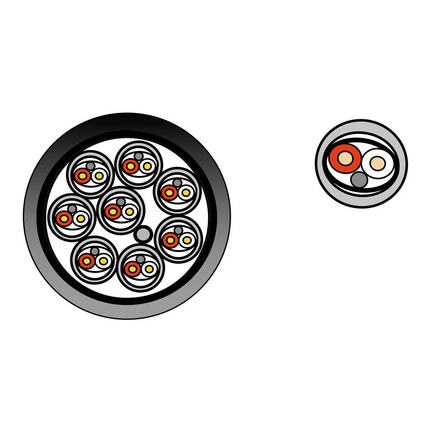

Construction and Dimensions

Cabling
DescriptionFiller
1 filler + 8 pairsCotton

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR
134.0 Ohm/km
Capacitance
Nom. Capacitance Conductor to Conductor
90 pF/m
Impedance
Nominal Characteristic Impedance
90 Ohm
Delay
Nominal Velocity of Propagation (VP) [%]
66%

Temperature Range

Other Temp Range: -40 to +70 °C

Mechanical Characteristics

Min Bend Radius During Installation: 125 mm
Min Setting Radius: 62.5 mm

Standards

CPR Euroclass: Eca

Applicable Environmental and Other Programs

Environmental Space: Indoor - Euroclass Eca
EU RoHS Compliance Date (yyyy-mm-dd): 2005-01-01

Flammability, LS0H, Toxicity Testing

IEC Flammability: IEC 60332-1-2

Part Number

Variants
Item #ColorPutup TypeLengthEAN
70033.00100BlackReel100 m8719605009647
70033.00250BlackReel250 m8719605171207
70033.00500BlackReel500 m8719605009654

History

Update and Revision: Revision Number: 0.132 Revision Date: 04-08-2020
Date: 2005-01-01
