(4)ANALOG AUDIO 1 PAIR, 24AWG/0.22mm², ISTP, LSZH
| Suitable Applications: | Single pair 24 AWG halogen free screened pair cable for analog audio; For analogue audio |
| AWG | Stranding | Material | Construction n x D | No. of Pairs |
|---|---|---|---|---|
| 24 | 7x32 | BC-OFHC - Oxygen-Free Bare Copper (High Conductivity) | 7x0.20 mm | 1 |
| Conductor Count: | 2 |
| Total Number of Pairs: | 1 |
| Type | Material | Nominal Diameter | Diameter +/- Tolerance |
|---|---|---|---|
| Insulation | PE - Polyethylene | 1.02 mm | 0.05 mm |
| Number | Color |
|---|---|
| Pair 1 | Red & Black |
| Type | Material | Coverage [%] | Drainwire Material | Drainwire AWG | Drainwire Construction n x D | Drainwire Position |
|---|---|---|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% | TC - Tinned Copper | 24 | 7x0.20 mm | Under shielding foil |
| Material | Nominal Diameter | Diameter +/- Tolerance |
|---|---|---|
| LSZH - Low Smoke Zero Halogen (Flame Retardant) | 3.1 mm | 0.1 mm |
| Description |
|---|

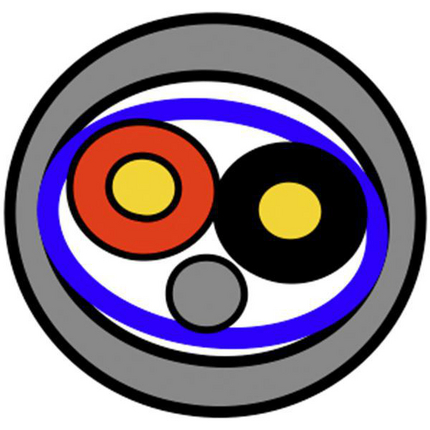

| 1 Pair + Stranded tinned copper drainwire (AWG 24)(7x0.20) |
| Nominal Conductor DCR | Nominal Outer Shield DCR |
|---|---|
| 88.5 Ohm/km | 52 Ohm/km |
| Nom. Capacitance Conductor to Conductor | Nom. Capacitance Conductor to Shield |
|---|---|
| 92 pF/m | 180 pF/m |
| Nominal Inductance |
|---|
| 0.75 µH/m |
| Other Temp Range: | -30-+70 °C |
| Max. Pull Tension: | 70 N |
| Min. Bend Radius During Installation: | 31 mm |
| Min Setting Radius: | 15.5 mm |
| CPR Euroclass: | Dca-s2,d1,a1 |
| Environmental Space: | Indoor - Euroclass Dca |
| IEC Flammability: | IEC 60332-1-2 |
| LOI of Jacket: | 34 % |
| IEC 60754-1 - Halogen Amount: | Zero |
| IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity: | 2.5 µS/mm |
| IEC 60754-2 - Halogen Acid Gas Amount - Min. pH: | 4.3 |
| IEC 61034-2 - Smoke Density Min. Transmittance: | 60% |
| Item # | Color | Put-Up Type | Length | EAN |
|---|---|---|---|---|
| 70030.01100 | Black | Reel | 100 m | 8719605009548 |
| 70030.01500 | Black | Reel | 500 m | 8719605009555 |
| 70030.00100 | Gray | Reel | 100 m | 8719605009524 |
| 70030.00500 | Gray | Reel | 500 m | 8719605009531 |
| Update and Revision: | Revision Number: 0.165 Revision Date: 02-15-2024 |
