70018E - AUDIO ANALOG 1 PAIR 26AWG,TPE


ANALOG AUDIO 1 PAIR 26AWG/0.14mm², TPE

Product Overview

Suitable Applications: 1 PR Audio snake cable for mobile applications

Physical Characteristics (Overall)

Conductor
AWGStrandingConstruction n x DNo. of Pairs
2618x3818x0.10 mm1
Conductor Count: 2
Total Number of Pairs: 1
Insulation
MaterialDiameter +/- Tolerance
PE - Polyethylene0.05 mm
Color Chart
Color
Red & White
Inner Shield Material
MaterialCoverage [%]
Tinned Copper (TC)90%
Inner Jacket Material
Material
TPE - Thermoplastic Elastomer
Table Notes: Jacket single element
Outer Shield Material
Material
Tinned Copper (TC)
Tinned Copper (TC)
Outer Jacket Material
MaterialNominal Diameter
TPE - Thermoplastic Elastomer4.50 mm

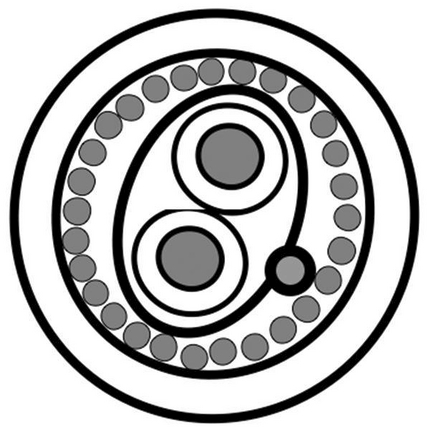

Construction and Dimensions

Cabling
Description
1 pair

Electrical Characteristics

Conductor DCR
Max. Conductor DCR
148 Ohm/km
Capacitance
Nom. Capacitance Conductor to Conductor
70 pF/m

Mechanical Characteristics

Min Bend Radius During Installation: 70 mm
Min Bend Radius During Operation: 45 mm

Applicable Environmental and Other Programs

Environmental Space: Indoor
EU RoHS Compliance Date (yyyy-mm-dd): 2016-11-25

Part Number

Variants
Item #ColorPutup TypeLengthEAN
70018E.00500BlackReel500 m8719605009487

History

Update and Revision: Revision Number: 0.78 Revision Date: 08-25-2020
Date: 2016-11-25
No accessories are available for this product
