70001LS - Profibus PA, 1PR #18 Str TC, PO ins, F/B, LSNH Jkt, 300 V


Profibus PA, 1 Pair AWG 18 Tinned Copper - Stranded, Polyolefin (PO, PE, PP) insulation, Foil + Braid(s) shielding, LSZH / FRNC jacket , 300 V

Product Overview

Suitable Applications: Profibus PA or Foundation FieldBus PA

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Pairs
187x26TC - Tinned Copper1
Conductor Count: 2
Total Number of Pairs: 1
Insulation
MaterialNominal DiameterDiameter +/- ToleranceNominal Wall Thickness
PE - Polyethylene (Foam)2.5 mm0.05 mm0.65 mm
Color Chart
NumberColor
Pair 1Red & Green
Inner Shield Material
TypeMaterialCoverage [%]Drainwire MaterialDrainwire AWG
TapeBi-Laminate (Alum+Poly)TC - Tinned CopperAWG20/7
BraidTinned Copper (TC)85%
Inner Jacket Material
MaterialColorNominal DiameterNominal Wall Thickness
LSZH - Low Smoke Zero Halogen (Flame Retardant)Black or Blue8 mm1.15 mm
Table Notes: UV Stabilised
Outer Jacket Material
MaterialNominal DiameterDiameter +/- ToleranceNominal Wall Thickness
LSZH - Low Smoke Zero Halogen (Flame Retardant)12.8 mm0.3 mm1.27 mm

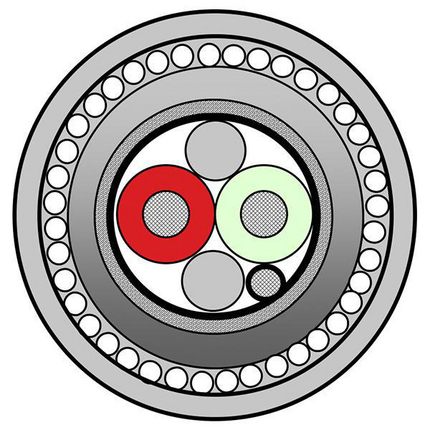

Construction and Dimensions

Cabling
DescriptionFiller
1 pair and 2 fillers twisted to cable corePolyethylene (2x) (1.65 mm)
Armor
Type of ArmorMaterialThickness of Armoring WiresCoverage Percentage
Steel Wire ArmoringGalvanized steel wire0.9 mmMin. 95%

Electrical Characteristics

Conductor DCR
Max. Conductor DCRMax. Outer Shield DCR
20.5 Ohm/km9 Ohm/km
Capacitance
Max. Capacitance Conductor to ConductorMax. Capacitance Unbalance
80 pF/m4 pF/m
Impedance
Frequency [MHz]Nominal Characteristic ImpedanceNominal Characteristic Tolerance
0.03125 MHz100 Ohm20 Ohm
High Frequency (Nominal/Typical)
Frequency [MHz]Nom. Insertion Loss
0.039 MHz0.3 dB/100m
Voltage
Voltage Rating [V]
300 V

Temperature Range

Installation Temp Range: -15°C To +70°C
Storage Temp Range: -45°C To +70°C
Operating Temp Range (Flexible Install): -15°C To +70°C
Operating Temp Range (Fixed Install): -45°C To +70°C

Mechanical Characteristics

Oil Resistance: IEC 60811-2-1
Max. Pull Tension: 50 N
Min Bend Radius During Installation: 120 mm
Min Setting Radius: 80 mm

Standards

CENELEC Compliance: EN 50290-2-27
Other Compliance: BS 7655 section 6.1 table 1, LTS 3

Applicable Environmental and Other Programs

Environmental Space: Outdoor
EU RoHS Compliance Date (yyyy-mm-dd): 2005-01-01

Suitability

Suitability - Sunlight Resistance: Yes

Flammability, LS0H, Toxicity Testing

IEC Flammability: IEC 60332-3-24
IEC 60754-1 (EN50267-1)- Halogen Amount: Zero
IEC 60754-2 (EN50267-2)- Halogen Acid Gas Amount - Max. Conductivity: 2.5 µS/mm
IEC 60754-2 (EN50267-2)- Halogen Acid Gas Amount - Min. pH: 4.3

Part Number

Variants
Item #ColorPutup TypeLengthEAN
70001LS.00120BlackReel120 m8719605009050
70001LS.00500BlackReel500 m8719605009067
70001LS.001000BlackReel1,000 m8719605009043
70001LS.01500BlueReel500 m8719605009081
70001LS.011000BlueReel1,000 m8719605009074
70001LS.021000OrangeReel1,000 m8719605009098

History

Update and Revision: Revision Number: 0.193 Revision Date: 08-25-2020
Date: 2005-01-01
