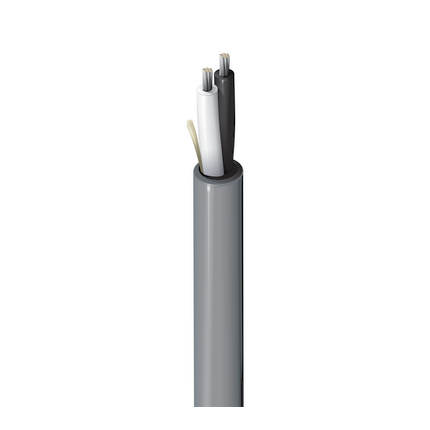

6T00UP - Audio Cable, 2 Conductor 10 AWG BC, CL2P


Commercial Audio Cable, 2 Conductor 10 AWG highly flexible stranded (65x28) bare copper conductors with Flamarrest® insulation, CL2P, Flamarrest® jacket with ripcord

Product Overview

Suitable Applications: High Flex Audio/Speaker

Construction Details

Conductor
ElementNumber of ElementSizeStrandingMaterial
Conductor(s)210 AWG65x28BC - Bare Copper
Insulation
ElementMaterialNom. ThicknessColor Code
Conductor(s)PVC - Polyvinyl Chloride0.011 in (0.28 mm)Black, White
Outer Shield
Material
No Shield
Outer Jacket
MaterialNom. ThicknessNom. DiameterRipcord
PVC - Polyvinyl Chloride0.017 in (0.43 mm)0.302 in (7.67 mm)Yes
Overall Cable Diameter (Nominal): 0.302 in (7.67 mm)

Electrical Characteristics

Electricals
ElementNom. Conductor DCRNom. Capacitance Cond-to-CondMax. Current
Conductor(s)1.07 Ohm/1000ft (3.51 Ohm/km)28 pF/ft (92 pF/m)27.8 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
150 V

Mechanical Characteristics

Temperature
Operating
-20°C to +75°C
Bend Radius
Stationary Min.Installation Min.
3.0 in (76 mm)3.0 in (76 mm)
Max. Pull Tension: 260 lbs (120 kg)
Bulk Cable Weight: 81 lbs/1000ft (120 kg/km)

Standards and Compliance

Environmental Suitability: Indoor - Plenum, Indoor
Flammability / Reaction to Fire: NFPA 262, IEC 60332-1-2
CPR Compliance: CPR Euroclass: Eca
NEC / UL Compliance: Article 725, CL2P
European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)
Non-Plenum Number: 5T00UP

History

Update and Revision: Revision Number: 0.344 Revision Date: 06-23-2022

Part Numbers

Variants
Item #ColorPutup TypeLengthUPC
6T00UP 0091000WhiteReel1,000 ft612825436515
6T00UP 0095000WhiteReel5,000 ft612825433521
