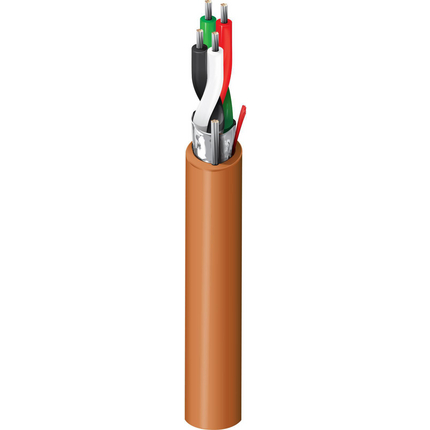

6661PT - Thermostat & Control, #24-2pr, TC, Indiv. Foil, CMP


Thermostat & Control Cable, Plenum-CMP, 2-24 AWG solid tinned copper pairs with foam FEP insulation, Individually Beldfoil® shielded and Flamarrest® jacket

Product Overview

Suitable Applications: Thermostat, Control, Noisy Environment

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Pairs
24SolidTC - Tinned Copper2
Total Number of Pairs: 2
Insulation
Material
FEP - Fluorinated Ethylene Propylene (Foam)
Color Chart
NumberColor
1Black & White
2Green & Red
Inner Shield Material
TypeMaterialMaterial Trade NameCoverage [%]Drainwire MaterialDrainwire AWG
TapeBi-Laminate (Alum+Poly)Beldfoil®100%TC - Tinned Copper24
Outer Shield Material
Drainwire Construction n x D
Solid
Outer Jacket Material
Material Trade NameNominal Diameter
Flamarrest®0.155 in

Electrical Characteristics

Conductor DCR
Individual Pair Nominal Shield DCRNominal Conductor DCRNominal Conductor DCR Conductor Resistance
15.3 Ohm/1000ft24.8 Ohm/1000ft24.8 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor
13.7 pF/ft
Inductance
Nominal Inductance
0.21 µH/ft
Impedance
Nominal Characteristic Impedance
100 Ohm
Delay
Max. Delay Skew
78 ns/100m
High Freq
Max./Min. Input Impedance (unFitted)
100 +/- 10 Ohm
Current
Max. Recommended Current [A]
3.2 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

UL Temp Rating: 75°C
Operating Temp Range: -20°C To +75°C

Mechanical Characteristics

Bulk Cable Weight: 16.9 lbs/1000ft
Max. Pull Tension: 30 lbs
Min Bend Radius/Minor Axis: 1.6 in

Standards

NEC Articles: Article 800
NEC/(UL) Compliance: CMP
CEC/C(UL) Compliance: CMP

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/11/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: Yes
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2006-02-01
MII Order #39 (China RoHS): Yes

Suitability

Suitability - Indoor: Yes

Flammability, LS0H, Toxicity Testing

C(UL) Flammability: FT6
UL Flammability: NFPA 262
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): Yes

Part Number

Variants
Item #ColorUPC
6661PT 0011000Brown612825178828
Footnote: C - CRATE REEL PUT-UP.

History

Update and Revision: Revision Number: 0.244 Revision Date: 08-25-2020
Date: 2006-02-01
