6660FT - Thermostat & Control, #24-2c, TC, O/A Foil, CMP

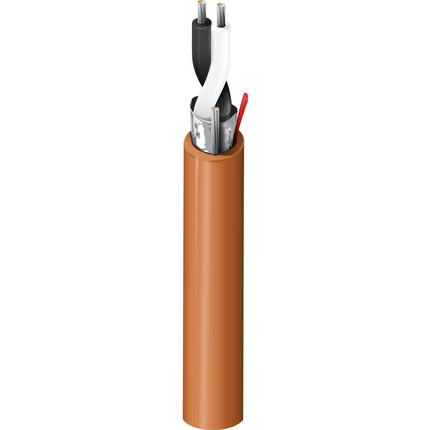

Thermostat & Control Cable, Plenum-CMP, 1-24 AWG solid tinned copper pair with foam FEP insulation, Beldfoil® shield, Flamarrest® jacket

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Pairs
24SolidTC - Tinned Copper1
Total Number of Pairs: 1
Conductor Size: 24 AWG
Insulation
Material
FFEP - Foam Fluorinated Ethylene Propylene
Color Chart
NumberColor
1Black & White
Outer Shield Material
TypeMaterialMaterial Trade NameCoverage [%]Drainwire MaterialDrainwire AWGDrainwire Construction n x D
TapeAluminum/PolyesterBeldfoil®100 %TC - Tinned Copper24Solid
Outer Jacket Material
Material Trade NameNominal Diameter
Flamarrest®0.128 in

Electrical Characteristics

Conductor DCR
Nominal Conductor DCRNominal Outer Shield DCR
24.8 Ohm/1000ft15.3 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor
16.9 pF/ft
Inductance
Nominal Inductance
0.21 µH/ft
Impedance
Nominal Characteristic Impedance
100 +/- 22 Ohm
Delay
Max. Delay SkewNominal Velocity of Propagation (VP) [%]
78 ns/100m78 %
High Freq
Max./Min. Input Impedance (unFitted)
100 ± 22 Ohm
Current
Max. Recommended Current [A]
Per conductor @ 25°C: 3.2 A
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

UL Temp Rating: 75°C
Operating Temp Range: -20°C To +75°C

Mechanical Characteristics

Bulk Cable Weight: 9.2 lbs/1000ft
Max Recommended Pulling Tension: 15 lbs
Min Bend Radius/Minor Axis: 1.3 in

Standards

NEC Articles: 800
NEC/(UL) Specification: CMP
CEC/C(UL) Specification: CMP

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/11/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2006-02-01
CA Prop 65 (CJ for Wire & Cable): Yes
MII Order #39 (China RoHS): Yes

Flammability, LS0H, Toxicity Testing

C(UL) Flammability: FT6
UL Flammability: NFPA 262 Plenum Flame Test (UL910)
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): Yes

Part Number

Non-Plenum Number: 5660FT
Variants
Item #ColorUPCFootnote
6660FT 0011000Brown612825178811C
Footnote: C - CRATE REEL PUT-UP.

History

Update and Revision: Revision Number: 0.231 Revision Date: 07-11-2019
Date: 2006-02-01
No accessories are available for this product
