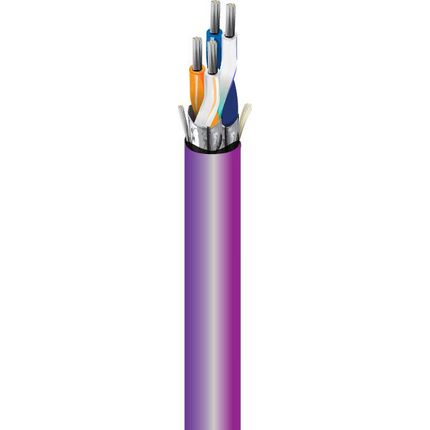

(4)2 PR 24AWG Shielded - Low- Capacitance Temperature Control, RS-485, CMP
| Suitable Applications: | RS-485 Serial Data, Dual OSDP Reader Access Control, Temperature Control |
| Element | No. of Pairs | Size | Stranding | Material | Notes |
|---|---|---|---|---|---|
| Data | 2 Pairs | 24 AWG | 7x32 | TC - Tinned Copper | 2 Pair Construction - Dual OSDP, RS-485, Temperature Controls |
| Element | Material | Nom. Thickness | Color Code |
|---|---|---|---|
| Data Pair(s) | FEP - Fluorinated Ethylene Propylene (Foam) | .018 in (0.46 mm) | 1. White/Blue, Blue,White, 2. White/Orange, Orange/White |
| Shield Type | Material | Coverage | Drainwire Type |
|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% | 24 AWG (7x32) TC |
| Material | Nom. Thickness | Nom. Diameter | Ripcord |
|---|---|---|---|
| PVC - Polyvinyl Chloride | .016 in (0.41 mm) | .238 in (6.05 mm) | Yes |
| Outer Jacket1 Table Notes: | Flamearrest Plenum Jacket |
| Element | Nom. Conductor DCR | Nom. Capacitance Cond-to-Cond | Nom. Capacitance Cond-to-Other (Conds + Shield) | Nom. Characteristic Impedence |
|---|---|---|---|---|
| Data Pair(s) | 26 Ohm/1000ft (85 Ohm/km) | 12.5 pF/ft (41.0 pF/m) | 22 pF/ft (72 pF/m) | 120 Ohm |
| UL Voltage Rating |
|---|
| 300 V |
| UL Temperature | Operating | Storage |
|---|---|---|
| 75°C | 0°C to +75°C | 32°C |
| Stationary Min. | Installation Min. |
|---|---|
| 1.6 in (41 mm) | 1.6 in (41 mm) |
| Max. Pull Tension: | 46 Lbs |
| Bulk Cable Weight: | 21 lbs/1000ft (31 kg/km) |
| Environmental Suitability: | Indoor - Plenum, Indoor |
| Sustainability: | CA Prop 65 |
| Flammability / Reaction to Fire: | NFPA 262, UL 910 (Plenum), FT6 |
| CPR Compliance: | CPR Euroclass: Eca |
| NEC / UL Compliance: | Article 800, CMP |
| TIA/EIA Compliance: | TIA/EIA 485-A |
| European Directive Compliance: | EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance: | UKCA Mark |
| APAC Compliance: | China RoHS II (GB/T 26572-2011) |
| Notes: | RS485, OSDP, BACNet, Temperature Controls |
| Update and Revision: | Revision Number: 0.4 Revision Date: 11-05-2025 |
