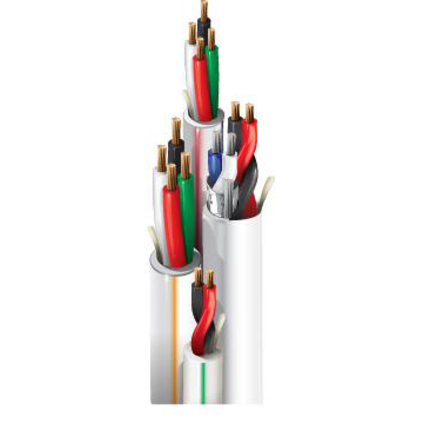

(4)OSDP Access Control Cable, CMP, 14C (OSDP Reader 1Pr-22, #18-2, #18-4, #22-6), , Banana Peel®
| Suitable Applications: | Access Control, Security System, Power Limited Controls, OSDP Reader |
| Patent: | This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents. |
| Element Description | Element | No. of Elements | Size | Stranding | Material | Notes |
|---|---|---|---|---|---|---|
| Card Reader | Data Pair(s) | 1 Pair | 22 | 7x30 | TC - Tinned Copper | Data Pair - 1 Pr. 22AWG Shielded, RS-485 - Reader |
| Power | 2 | 18 | 7x26 | BC - Bare Copper | Power Pair - 2C 18AWG Unshielded | |
| Door Contact | Conductor(s) | 2 | 22 | 7x30 | BC - Bare Copper | |
| REX/Spare | Conductor(s) | 4 | 22 | 7x30 | BC - Bare Copper | |
| Lock Power | Conductor(s) | 4 | 18 | 7x26 | BC - Bare Copper |
| Element Description | Element | Material | Nom. Thickness | Color Code |
|---|---|---|---|---|
| Card Reader | Data Pair(s) | FEP - Fluorinated Ethylene Propylene (Foam) | .025 in (0.64 mm) | Blue, White |
| Power | PVC - Polyvinyl Chloride | .012 in (0.30 mm) | Black, Red | |
| Door Contact | Conductor(s) | PVC - Polyvinyl Chloride | .008 in (0.20 mm) | Black, Red |
| REX/Spare | Conductor(s) | PVC - Polyvinyl Chloride | .008 in (0.20 mm) | Black, Red, White, Green |
| Lock Power | Conductor(s) | PVC - Polyvinyl Chloride | .008 in (0.20 mm) | Black, Red, White, Green |
| Element Description | Element | Shield Type | Material | Coverage | Drainwire Type |
|---|---|---|---|---|---|
| Card Reader | Data Pair(s) | Tape | Bi-Laminate (Alum+Poly) | 100% | 24 AWG (7x32) TC |
| Power | No Shield | ||||
| Door Contact | Conductor(s) | No Shield | |||
| REX/Spare | Conductor(s) | No Shield | |||
| Lock Power | Conductor(s) | No Shield |
| Element | Material | Nom. Thickness | Nom. Diameter | Ripcord | Color |
|---|---|---|---|---|---|
| Card Reader | PVC - Polyvinyl Chloride (Conductive) | .020 in (0.51 mm) | .221 in (5.61 mm) | White | |
| Door Contact | PVC - Polyvinyl Chloride | .015 in (0.38 mm) | .120 in (3.05 mm) | Yes | White/Green Stripe |
| REX/Spare | PVC - Polyvinyl Chloride | .015 in (0.38 mm) | .139 in (3.53 mm) | Yes | White/Red Stripe |
| Lock/Power | PVC - Polyvinyl Chloride | .015 in (0.38 mm) | .189 in (4.80 mm) | Yes | White/Orange Stripe |
| Material | Nom. Diameter |
|---|---|
| Banana Peel (No Overall Jacket) | .461 in (11.7 mm) |
| Table Notes: | Banana Peel® |
| Overall Cable Diameter (Nominal): | .461 in (11.7 mm) |
| Element Description | Element | Nom. Conductor DCR | Nom. Capacitance Cond-to-Cond | Nom. Capacitance Cond-to-Other (Conds + Shield) | Nom. Characteristic Impedence |
|---|---|---|---|---|---|
| Card Reader | Data Pair(s) | 16.8 Ohm/1000ft (55.1 Ohm/km) | 13 pF/ft (43 pF/m) | 24 pF/ft (79 pF/m) | 120 Ohm |
| Power | 6.2 Ohm/1000ft (20 Ohm/km) | ||||
| Door Contact | Conductor(s) | 16.2 Ohm/1000ft (53.1 Ohm/km) | |||
| REX/Spare | Conductor(s) | 16.2 Ohm/1000ft (53.1 Ohm/km) | |||
| Lock Power | Conductor(s) | 6.2 Ohm/1000ft (20 Ohm/km) |
| UL Voltage Rating |
|---|
| 300 V |
| UL Temperature | Operating |
|---|---|
| 75°C | 0°C to +75°C |
| Installation Min. |
|---|
| 4.6 in (120 mm) |
| Max. Pull Tension: | 205 lbs (93.0 kg) |
| Bulk Cable Weight: | 105 lbs (47.6 kg) |
| Environmental Suitability: | Indoor - Plenum, Indoor |
| Flammability / Reaction to Fire: | NFPA 262, UL 910 (Plenum), FT6 |
| CPR Compliance: | CPR Euroclass: Eca |
| NEC / UL Compliance: | Article 800, CMP |
| CEC / C(UL) Compliance: | CMP |
| European Directive Compliance: | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance: | China RoHS II (GB/T 26572-2011) |
| Notes: | Cold environment installation: When installing cables that have been stored at ambient temperatures of 32 degrees Fahrenheit (0 degrees Centigrade) or lower, Belden recommends conditioning of the cable for 12 hours at room temperature prior to individual cable leg separation |
| Update and Revision: | Revision Number: 0.5 Revision Date: 08-20-2025 |
