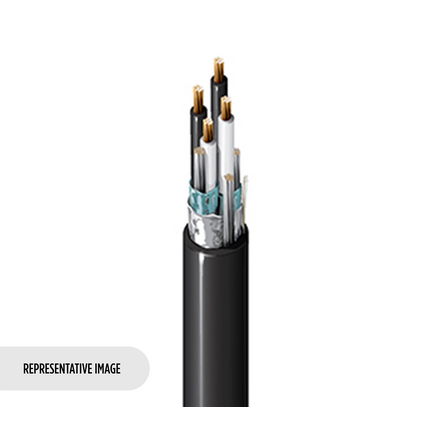

6541PA - 2 Pair #22 Str BC, Individually Shielded, PVDF Jkt, Plenum
Networking & Data Cable
(401)Industrial Ethernet Cable
(80)Enterprise Category Cable
(170)Industrial Protocol / Data Bus Cable
(149)Audio Cable
(379)Digital
(53)Analog
(102)Microphone
(42)Nurse Call
(23)Audio Over Internet Protocol (IP)
(7)Speaker & Control
(203)Video Cable
(347)75 Ohm SDI Coax
(104)Camera Cable
(48)CATV & Satelite
(100)CCTV & Security
(33)RGB Cable
(68)Video Over Internet Protocol (IP) Cable
(10)Coax & Triax Cable
(480)50 Ohm Transmission Cable
(87)75 Ohm SDI Coax
(101)CATV & Satelite Cable
(92)Triax Cable
(19)DS3 & DS4 Cable
(38)Conformable Cable
(12)Mil-Spec Cable
(5)CCTV & Security Cable
(26)Computer and Instrumentation Cable
(8)Multi-Media Cable
(41)Fiber Cable
(5742)Indoor Fiber Cable
(1172)Indoor/Outdoor Fiber Cable
(2273)Outdoor Fiber Cable
(2079)SMPTE Cable
(12)Tactical Fiber Cable
(231)Flexible Automation Cable
(107)300V (PLTC) & 600V (TC-ER) Control Cable
(82)Flex Data Cable
(7)Vision Systems
(5)Flex VFD Cable
(13)Tray Cable
(1028)Instrumentation Cable
(324)UL 300V PLTC/PLTC-ER Cable
(170)UL 600V TC/TC-ER Pairs/Triads
(117)UL Thermocouple
(35)CSA ACIC Cable
(35)IMSA
(2)Control / Power Cable
(721)VFD Cable
(108)Digital Electricity
(25)Hybrid Fiber-Copper Cable
(150)Safety, Sound, & Security Cable
(497)Audio, Sound, & Control Cable
(171)Access Control Cable
(20)Fire Alarm Cable
(72)Nurse Call
(15)Security & Alarm Cable
(174)Surveillance Cable
(45)Connectors & Outlets
(1918)Modular Couplers
(11)Modular Plugs
(23)Receptacles
(7)Coax Connectors
(82)12 GHz BNC Connectors
(10)6 GHz BNC Connectors
(18)ProSNS Connectors
(36)Double Bubble Connectors
(18)Multi Media Modules
(15)Copper Connector Accessories
(11)Fiber Connectors
(45)Mechanical Connectors
(20)Fiber Connector Accessories
(8)Adapters
(2)Fusion Splice-On Connectors
(15)Valve Connectors
(406)Cross Connect Systems
(12)Category 6A Cross Connect Systems
(3)Category 6 Cross Connect Systems
(5)Category 5E Cross Connect Systems
(4)Power Connectors
(512)M12 Power
(161)ST Series
(59)CA Series
(12)7/8" Circular Connectors
(117)M23 Circular Connectors
(47)Mini Power
(58)Receptacles
(12)Tees, Reducers & Adapters
(10)Single-Ended Cordsets
(16)Double-Ended Cordsets
(20)G-Series
(58)Sensor Actuator Connectors
(637)Workstation Outlets
(71)KeyConnect Outlets
(12)MDVO-Style Outlets
(10)MediaFlex System
(17)Multi Media Modules
(17)Workstation Consolidation
(15)Data Connectors
(79)Assemblies & Cordsets
(428)Double-Ended Cordsets
(166)Pigtails
(15)Single-Ended Cordsets
(170)Pre-Terminated Assemblies
(42)AV Assemblies
(8)Patch Panels & Components
(293)Fiber Patch Panels
(34)Preloaded Coupler Patch Panels
(2)Fiber Cassettes
(69)Adapter Frames
(63)Adapter Strips
(13)Fiber Wall Mounts
(6)Patch Panel Accessories
(33)Industrial Networking
(890)SPIDER Fast/Gigabit Switches
(94)Managed Switches
(244)BOBCAT
(44)GECKO Switches
(4)MSP – Modular Gigabit Switches
(19)MSP – The Modular Gigabit Switches (Layer 2/3)
(11)MSM - Configurable Media Modules for MSP Switches
(8)MICE - Modular Switches
(31)RSB20 Basic Switches
(35)RS20/30/40 Switches
(56)RSR Switches
(17)RED25 Switches
(3)RSP/RSPL/RSPS/RSPE Switches
(35)Rack Mount Switches
(96)DRAGON MACH4000
(12)GREYHOUND 1020/1030
(9)GREYHOUND 1040
(20)MACH1020/1030
(2)MACH1040
(3)MACH4000
(21)MACH100
(29)IP65/IP67 Switches & Routers
(49)Embedded Ethernet
(3)Security & Firewalls
(16)MPLS Backbone Switches
(65)Wireless
(40)Cellular Routers
(10)Wireless LAN Devices
(6)BAT450-F WLAN Access Points
(1)BAT867-R Industrial Wireless Access Points
(1)BAT-C2
(3)OpenBAT-R / -F
(1)Wireless LAN Controller
(1)Antennas
(14)Accessories
(9)Software
(85)Secure Remote Access
(8)Network Management
(16)Software Tools
(4)Device Software
(57)Accessories
(160)Transceivers
(62)Fast Ethernet SFP Transceiver
(14)Fast Ethernet Bi-Directional SFP Transceivers
(6)Gigabit Ethernet SFP Transceiver
(14)Gigabit Ethernet Bi-Directional SFP Transceiver
(12)2.5 Gigabit Ethernet SFP Transceiver
(5)10 Gigabit Ethernet XFP and SFP+ Transceivers
(11)Auto-Configuration Adapter – ACA
(11)Connectors
(5)Mounting Accessories
(19)Miscellaneous Accessories
(12)Power over Ethernet (PoE) Injector
(3)Power Supplies and Cables
(18)Serial to Ethernet converters
(4)Terminal Cables
(6)Wireless Accessories
(21)FiberINTERFACES
(47)Fieldbus Repeater
(31)Geniusbus Repeater
(2)Modbus Plus Repeater
(2)Profibus Repeater
(24)Universal Fieldbus Repeater
(3)Fiber Converters
(6)OptoQuick Components
(7)Optical Bypass Relay OBR40
(3)Racks & Cabinets
(441)Seismic Cabinets
(10)Consolidation-MDU Enclosures
(2)Cabinet Individual Component Ordering Options
(20)Zone Enclosures
(3)Racks
(26)2 Post Rack
(12)Aluminum Knockdown
(1)Swing Rack
(1)Steel Knockdown
(4)Steel Welded
(2)Value Series Rack Kit
(4)4 Post Rack
(3)Seismic Rack
(3)Wall Mount Rack
(8)Power Distribution & Climate Monitoring
(100)Basic
(82)Local Monitored
(11)Remotely Switched - Outlet Level Monitoring
(1)Remotely Switched - Unit Level Monitoring
(3)Power Monitored
(3)Heat Containment
(5)Security & Access Control
(4)Cable Management
(32)Cable Runways
(199)Rack & Cabinets Accessories
(36)Shelves
(1)Cabinet Accessories
(20)Lacing Accessories
(6)Lacing/PDU Mounting Panels
(1)Bottom Seal Skirts
(2)Cabinet Caster Kit
(2)Frame & Rail Brush Kits
(3)Front to Rear Cable Manager
(1)Top Cable Trough
(1)Vertical Finger Managers
(2)Filler (Blanking) Panels
(4)Fans
(1)Grounding & Bonding
(3)Mounting Hardware
(3)PDU Accessories
(1)Zero U Vertical Patch Panel
(2)Termination Tools & Accessories
(48)Fiber Splicers & Tool Kits
(9)Label & Identification
(7)Fanout & Breakout Kits
(2)Outlet & Hardware Accessories
(17)I/O Systems
(69)Ethernet I/O Modules
(34)IO-Link Masters and Devices
(23)Fieldbus I/O Modules
(10)| Suitable Applications: | Security, Pro Audio, Intercom |
| Element | AWG | Stranding | Material | Nominal Diameter | No. of Pairs |
|---|---|---|---|---|---|
| Pair(s) | 22 | 7x30 | BC - Bare Copper | 0.029 in | 2 |
| Conductor Count: | 4 |
| Total Number of Pairs: | 2 |
| Element | Material | Material Trade Name | Nominal Diameter | Nominal Wall Thickness |
|---|---|---|---|---|
| Pair(s) | FEP - Fluorinated Ethylene Propylene | Teflon® | 0.049 in | 0.01 in |
| Number | Color |
|---|---|
| 1 | Black & Red |
| 2 | Black & White |
| Element | Type | Material | Material Trade Name | Coverage [%] | Drainwire Material | Drainwire AWG | Drainwire Construction n x D |
|---|---|---|---|---|---|---|---|
| Pair(s) | Tape | Alum / Poly | Beldfoil® | 100% | TC - Tinned Copper | 24 | 7x32 |
| Material | Nominal Diameter | Nominal Wall Thickness | Ripcord |
|---|---|---|---|
| PVDF - Polyvinylidene Fluoride | 0.214 in | 0.015 in | Yes |
| Twists |
|---|
| 6.9 twist/ft |
| Individual Pair Nominal Shield DCR | Nominal Conductor DCR |
|---|---|
| 15.3 Ohm/1000ft | 16.4 Ohm/1000ft |
| Nom. Capacitance Conductor to Conductor | Nom. Capacitance Conductor to Other Conductor to Shield |
|---|---|
| 27.5 pF/ft | 49.5 pF/ft |
| Nominal Inductance |
|---|
| 0.18 µH/ft |
| Nominal Characteristic Impedance |
|---|
| 50 Ohm |
| Nominal Velocity of Propagation (VP) [%] |
|---|
| 69% |
| Max. Recommended Current [A] |
|---|
| 2.2 Amps per conductor @ 25°C |
| UL Voltage Rating |
|---|
| 300 V RMS |
| UL Temp Rating: | 75°C |
| Operating Temp Range: | -20°C To +150°C |
| Bulk Cable Weight: | 23.7 lbs/1000ft |
| Max Recommended Pulling Tension: | 47.4 lbs |
| Min Bend Radius/Minor Axis: | 2.1 in |
| NEC Articles: | Article 800 |
| NEC/(UL) Specification: | CMP |
| CEC/C(UL) Specification: | CMP |
| Environmental Space: | Indoor - Plenum |
| EU Directive 2000/53/EC (ELV): | Yes |
| EU Directive 2003/96/EC (BFR): | Yes |
| EU Directive 2011/65/EU (ROHS II): | Yes |
| EU Directive 2012/19/EU (WEEE): | Yes |
| EU Directive Compliance: | EU Directive 2003/11/EC (BFR) |
| EU CE Mark: | Yes |
| EU RoHS Compliance Date (yyyy-mm-dd): | 2005-04-01 |
| MII Order #39 (China RoHS): | Yes |
| C(UL) Flammability: | FT6 |
| UL Flammability: | NFPA 262 |
| UL voltage rating: | 300 V RMS |
| Plenum (Y/N): | Yes |
| Item # | Color | Putup Type | Length | UPC |
|---|---|---|---|---|
| 6541PA 0081000 | Gray | Reel | 1,000 ft | 612825430025 |
| 6541PA 008U1000 | Gray | UnReel | 1,000 ft | 612825178378 |
| 6541PA 0085000 | Gray | Reel | 5,000 ft | 612825178255 |
| Footnote: | C - CRATE REEL PUT-UP. |
| Notes: | Teflon« is a registered trademark of E. I. duPont de Nemours and Co. used under license by Belden, Inc. |
| Update and Revision: | Revision Number: 0.307 Revision Date: 05-11-2020 |
