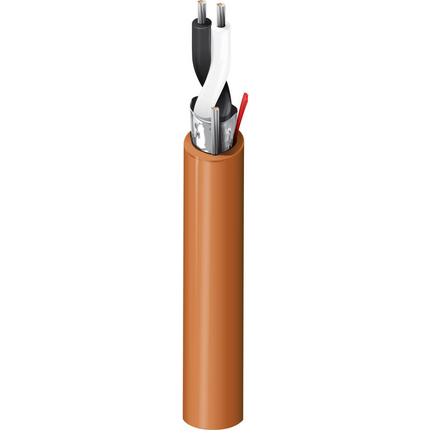

6540FT - Thermostat & Control, #22-2c, TC, O/A Foil, CMP


Thermostat & Control Cable, Plenum-CMP, 1-22 AWG stranded tinned copper pair with foam FEP insulation, Beldfoil® shield, Flamarrest® jacket

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Pairs
227x30TC - Tinned Copper1
Conductor Count: 2
Conductor Size: 22 AWG
Insulation
Material
FFEP - Foam Fluorinated Ethylene Propylene
Color Chart
NumberColor
1Black & White
Outer Shield Material
TypeMaterialMaterial Trade NameCoverage [%]Drainwire MaterialDrainwire AWGDrainwire Construction n x D
TapeAluminum/PolyesterBeldfoil®100 %TC - Tinned Copper22Solid
Outer Jacket Material
MaterialMaterial Trade NameNominal Diameter
LS PVC - Low Smoke Polyvinyl ChlorideFlamarrest®0.162 in

Electrical Characteristics

Conductor DCR
Nominal Conductor DCRNominal Outer Shield DCR
14.5 Ohm/1000ft19 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor
16.9 pF/ft
Inductance
Nominal Inductance
0.21 µH/ft
Delay
Max. Delay SkewNominal Velocity of Propagation (VP) [%]
78 ns/100m78 %
High Freq
Max./Min. Input Impedance (unFitted)
100 ± 22 Ohm
Current
Max. Recommended Current [A]
4.3 Amps per conductor @ 20°C A
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

UL Temp Rating: 75°C
Operating Temp Range: -20°C To +75°C

Mechanical Characteristics

Bulk Cable Weight: 13 lbs/1000ft
Max Recommended Pulling Tension: 27 lbs
Min Bend Radius/Minor Axis: 1.6 in

Standards

NEC/(UL) Specification: CMP
CEC/C(UL) Specification: CMP

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2006-02-01
CA Prop 65 (CJ for Wire & Cable): Yes
MII Order #39 (China RoHS): Yes

Flammability, LS0H, Toxicity Testing

C(UL) Flammability: FT6
UL Flammability: NFPA 262 Plenum Flame Test (UL910)
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): Yes

Part Number

Variants
Item #ColorUPC
6540FT 0011000Brown612825178217

History

Update and Revision: Revision Number: 0.233 Revision Date: 07-11-2019
Date: 2006-02-01
