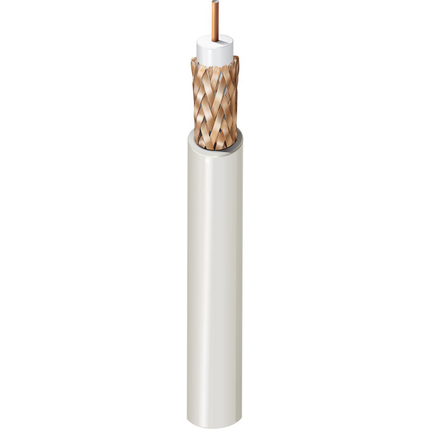

(4)Surveillance, CCTV & Card Reader Cable, RG62, Plenum-CMP, 22 AWG solid bare copper-covered steel, foamed polyolefin core, 95% bare copper braid, Flamarrest® jacket
| Suitable Applications: | Surveillance, CCTV Camera, Card Reader/Sensor |
| AWG | Stranding | Material | Nominal Diameter | No. of Coax |
|---|---|---|---|---|
| 22 | Solid | BCCS - Bare Copper Covered Steel | 0.025 in | 1 |
| Material | Nominal Diameter |
|---|---|
| FEP - Fluorinated Ethylene Propylene (Foam) | 0.146 in |
| Type | Material | Coverage [%] |
|---|---|---|
| Braid | Bare Copper (BC) | 95% |
| Material | Material Trade Name | Nominal Diameter |
|---|---|---|
| PVC - Polyvinyl Chloride | Flamarrest® | 0.204 in |
| Nominal Conductor DCR | Nominal Conductor DCR Conductor Resistance | Nominal Outer Shield DCR | Outer Conductor DCR |
|---|---|---|---|
| 41.2 Ohm/1000ft | 41.2 Ohm/1000ft | 3.4 Ohm/1000ft | 3.4 Ohm/1000ft |
| Nom. Capacitance Conductor to Shield |
|---|
| 13.5 pF/ft |
| Nominal Inductance |
|---|
| 0.107 µH/ft |
| Nominal Characteristic Impedance |
|---|
| 93 Ohm |
| Frequency [MHz] | Nom. Insertion Loss |
|---|---|
| 1 MHz | 0.3 dB/100ft |
| 10 MHz | 0.9 dB/100ft |
| 50 MHz | 1.9 dB/100ft |
| 100 MHz | 2.7 dB/100ft |
| 200 MHz | 3.8 dB/100ft |
| 400 MHz | 5.3 dB/100ft |
| 700 MHz | 7.3 dB/100ft |
| 900 MHz | 8.2 dB/100ft |
| 1000 MHz | 8.7 dB/100ft |
| Nominal Delay | Nominal Velocity of Propagation (VP) [%] |
|---|---|
| 1.21 ns/ft | 84% |
| UL Voltage Rating |
|---|
| 300 V RMS |
| UL Temp Rating: | 75°C |
| Operating Temperature Range: | 0°C To +75°C |
| Bulk Cable Weight: | 30 lbs/1000ft |
| Max. Pull Tension: | 67 lbs |
| Min. Bend Radius/Minor Axis: | 2 in |
| NEC/(UL) Compliance: | CMP |
| CEC/C(UL) Compliance: | CMP |
| RG Type: | 62 |
| EU Directive 2000/53/EC (ELV): | Yes |
| EU Directive 2003/11/EC (BFR): | Yes |
| EU Directive 2011/65/EU (RoHS 2): | Yes |
| EU Directive 2012/19/EU (WEEE): | Yes |
| EU Directive 2015/863/EU (RoHS 2 amendment): | Yes |
| EU Directive Compliance: | Yes |
| MII Order #39 (China RoHS): | Yes |
| Suitability - Burial: | No |
| Suitability - Hazardous Locations: | No |
| Suitability - Indoor: | Yes |
| UL Flammability: | NFPA 262 |
| UL voltage rating: | 300 V RMS |
| Plenum (Y/N): | Yes |
| Item # | Color | Put-Up Type | Length | UPC |
|---|---|---|---|---|
| 6539Y8 8771000 | Natural | Reel | 1,000 ft | 612825178200 |
| Notes: | Print legend includes sequential footage marks. |
| Update and Revision: | Revision Number: 0.289 Revision Date: 02-03-2025 |
