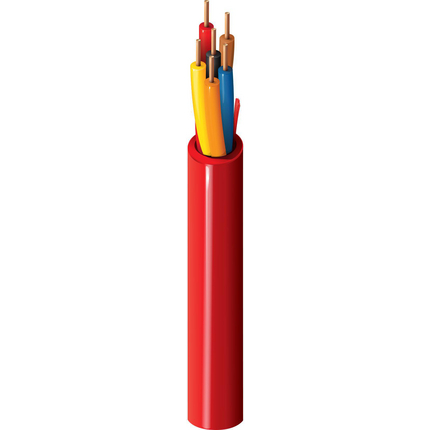

6524UL - Fire Alarm, #22-6c BC, FPLP


Fire Alarm Cable, Plenum-FPLP,6-22 AWG solid bare copper conductors with Flamarrest® insulation, Flamarrest® jacket with ripcord

Product Overview

Suitable Applications: Fire Alarm, Monitor/Detection, Circuits: Audio, Control, Initiating, Notification

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Conductors
22SolidBC - Bare Copper6
Conductor Count: 6
Insulation
MaterialMaterial Trade NameNominal Wall Thickness
PVC - Polyvinyl ChlorideFlamarrest®0.009 in
Color Chart
NumberColor
1Black
2Red
3Brown
4Blue
5Orange
6Yellow
Outer Shield Material
Material
No Shield
Outer Jacket Material
MaterialMaterial Trade NameNominal DiameterNominal Wall ThicknessRipcord
PVC - Polyvinyl ChlorideFlamarrest®0.162 in0.015 inYes

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR
15.7 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor
25 pF/ft
Current
Max. Recommended Current [A]
2 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

UL Temp Rating: 75°C
Operating Temp Range: 0°C To +75°C

Mechanical Characteristics

Bulk Cable Weight: 20.8 lbs/1000ft
Max. Pull Tension: 46.8 lbs
Min Bend Radius/Minor Axis: 1.6 in

Standards

NEC Articles: Article 760
NEC/(UL) Compliance: FPLP
Other Compliance: California State Fire Marshall

Applicable Environmental and Other Programs

EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2005-04-01
MII Order #39 (China RoHS): Yes

Flammability, LS0H, Toxicity Testing

UL Flammability: NFPA 262 Plenum Flame Test (UL910)
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): Yes

Part Number

Non-Plenum Number: 5524UL
Variants
Item #ColorUPC
6524UL 002C500Red612825178194

History

Update and Revision: Revision Number: 0.216 Revision Date: 06-24-2020
Date: 2005-04-01
