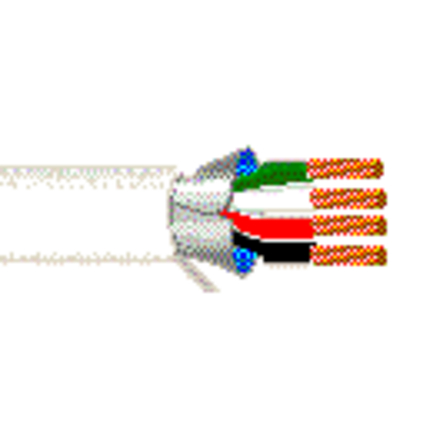

6502FC - Security & Sound, 4 Conductor 22 AWG BC, Shielded, Plenum


Security, Pro Audio & Intercom Cable, 4 Conductor 22 AWG stranded (7x30) bare copper conductors with FEP insulation, Beldfoil® shield, Plenum, Flamarrest® jacket with ripcord.

Product Overview

Environmental Space: Indoor - Plenum
Suitable Applications: Pro Audio, Intercom/PA Systems, Security Systems

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Conductors
227x30BC - Bare Copper4
Conductor Count: 4
Insulation
MaterialNominal Wall Thickness
FEP - Fluorinated Ethylene Propylene0.006 in
Color Chart
NumberColor
1Black
2Red
3White
4Green
Outer Shield Material
TypeMaterialMaterial Trade NameCoverage [%]Drainwire MaterialDrainwire AWGDrainwire Construction n x D
TapeAluminum/PolyesterBeldfoil®100 %TC - Tinned Copper247x32 mm
Outer Jacket Material
MaterialMaterial Trade NameNominal DiameterNominal Wall ThicknessRipcord
LS PVC - Low Smoke Polyvinyl ChlorideFlamarrest®0.133 in0.015 inYes

Electrical Characteristics

Conductor DCR
Nominal Conductor DCRNominal Outer Shield DCR
16.2 Ohm/1000ft15.3 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to ConductorNom. Capacitance Conductor to Other Conductor to Shield
27.5 pF/ft49.5 pF/ft
Current
Max. Recommended Current [A]
2.2 Amps per conductor @ 25°C
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

UL Temp Rating: 75°C
Operating Temp Range: 0°C To +75°C

Mechanical Characteristics

Bulk Cable Weight: 15.2 lbs/1000ft
Max Recommended Pulling Tension: 41.9 lbs
Min Bend Radius/Minor Axis: 1.3 in

Standards

NEC Articles: 800
NEC/(UL) Specification: CMP
CEC/C(UL) Specification: CMP

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2005-04-01
CA Prop 65 (CJ for Wire & Cable): Yes
MII Order #39 (China RoHS): Yes

Flammability, LS0H, Toxicity Testing

C(UL) Flammability: FT6
UL Flammability: NFPA 262
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): Yes

Part Number

Variants
Item #ColorUPCLength
6502FC 8771000Natural6128251777841,000 ft

History

Update and Revision: Revision Number: 0.264 Revision Date: 08-22-2019
Date: 2005-04-01
