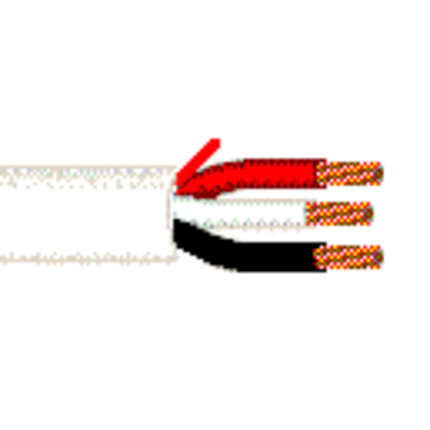

6501UE - Security & Sound, 3 Conductor 22 AWG BC, Plenum


Security & Commercial Audio Cable, 3 Conductor 22 AWG stranded (7x30) bare copper conductors with Flamarrest® insulation, Plenum, Flamarrest® jacket with ripcord.

Product Overview

Environmental Space: Indoor - Plenum
Suitable Applications: Intercom/PA Systems, Sound/Audio Systems

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Conductors
227x30BC - Bare Copper3
Conductor Count: 3
Insulation
MaterialMaterial Trade NameNominal Wall Thickness
LS PVC - Low Smoke Polyvinyl ChlorideFlamarrest®0.009 in
Color Chart
NumberColor
1Black
2Red
3White
Outer Shield Material
Material
Unshielded
Outer Jacket Material
MaterialMaterial Trade NameNominal DiameterNominal Wall ThicknessRipcord
LS PVC - Low Smoke Polyvinyl ChlorideFlamarrest®0.131 in0.015 inYes

Construction and Dimensions

Cabling
Twists
4.8 twist/ft

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR
16.1 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor
25 pF/ft
Current
Max. Recommended Current [A]
2.8 Amps per conductor @ 25°C
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

UL Temp Rating: 75°C
Operating Temp Range: 0°C To +75°C

Mechanical Characteristics

Bulk Cable Weight: 13.3 lbs/1000ft
Max Recommended Pulling Tension: 27.3 lbs
Min Bend Radius/Minor Axis: 1.3 in

Standards

NEC Articles: 800
NEC/(UL) Specification: CMP
CEC/C(UL) Specification: CMP

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2005-04-01
CA Prop 65 (CJ for Wire & Cable): Yes
MII Order #39 (China RoHS): Yes

Flammability, LS0H, Toxicity Testing

C(UL) Flammability: FT6
UL Flammability: NFPA 262
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): Yes

Part Number

Non-Plenum Number: 5501UE
Variants
Item #ColorUPCLength
6501UE 8771000Natural6128251775311,000 ft
6501UE 877U1000Natural6128254240311,000 ft
6501UE 877Z1000Natural6128251775551,000 ft

History

Update and Revision: Revision Number: 0.259 Revision Date: 08-22-2019
Date: 2005-04-01
