6500FH - Security & Commercial Audio Cable, 2 Conductor 22 AWG, Flamarrest® Jacket, CMP

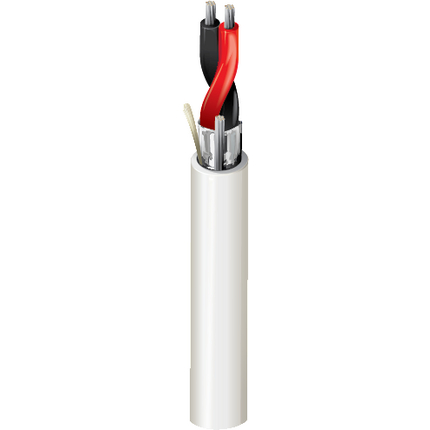

Security & Commercial Audio Cable, Plenum-CMP, 2-22 AWG stranded tinned copper conductors with Flamarrest® insulation, Beldfoil® shield and Flamarrest® jacket with ripcord

Product Overview

Suitable Applications: Intercom/PA Systems and Sound/Audio Systems

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Conductors
227x30TC - Tinned Copper2
Conductor Count: 2
Insulation
MaterialMaterial Trade NameNominal Diameter
PVC-LS - Polyvinyl Chloride (Low Smoke)Flamarrest®0.048 in
Color Chart
NumberColor
1Black
2Red
Outer Shield Material
TypeMaterialMaterial Trade NameCoverage [%]Drainwire MaterialDrainwire AWG
TapeAlum / PolyBeldfoil®100%TC - Tinned Copper24
Outer Jacket Material
MaterialNominal Diameter
PVC-LS - Polyvinyl Chloride (Low Smoke)0.130 in

Electrical Characteristics

Conductor DCR
Nominal Conductor DCRNominal Outer Shield DCR
16.4 Ohm/1000ft15.3 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to ConductorNom. Capacitance Conductor to Other Conductor to Shield
55 pF/ft99 pF/ft
Inductance
Nominal Inductance
0.17 µH/ft
Current
Max. Recommended Current [A]
2.8 Amps per conductor at 25°C
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

UL Temp Rating: 75°C
Operating Temp Range: 0°C to +75°C

Mechanical Characteristics

Max. Pull Tension: 24 lbs
Min Bend Radius/Minor Axis: 1.5 in

Standards

NEC Articles: Article 800
NEC/(UL) Compliance: CMP
CEC/C(UL) Compliance: CMP

Applicable Environmental and Other Programs

Environmental Space: Indoor - Plenum
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: No
EU RoHS Compliance Date (yyyy-mm-dd): 2004-01-01

Suitability

Suitability - Aerial: No
Suitability - Burial: No
Suitability - Hazardous Locations: No
Suitability - Indoor: Yes
Suitability - Outdoor: No
Suitability - Sunlight Resistance: No

Flammability, LS0H, Toxicity Testing

C(UL) Flammability: FT6
UL Flammability: NFPA 262
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): Y

Part Number

Non-Plenum Number: 5500FH
Variants
Item #ColorPutup TypeLengthUPC
6500FH 010U1000BlackUnReel1,000 ft612825177401
6500FH 8771000NaturalReel1,000 ft612825177395
6500FH 877U1000NaturalUnReel1,000 ft612825177418
6500FH 009U1000WhiteUnReel1,000 ft612825177388

History

Update and Revision: Revision Number: 0.84 Revision Date: 06-01-2020
Date: 2004-01-01
