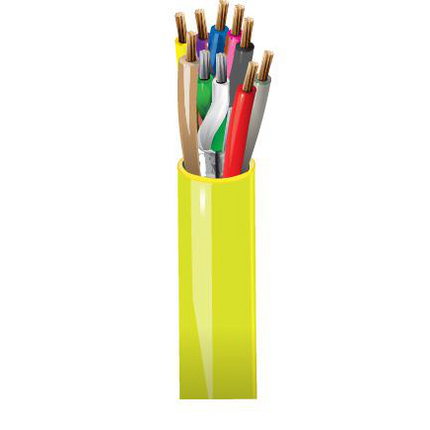

(4)1 Pair 22AWG Shielded Pair (OSDP) + 8 Conductor 20AWG Unshlielded CMP
| Suitable Applications: | Server Cabinet Lock - Data Centers OSDP |
| Element | No. of Elements | Size | Stranding | Material | Notes |
|---|---|---|---|---|---|
| Data Pair(s) | 2 (1 Pair) | 22 AWG | 7x30 | TC - Tinned Copper | 1 Pair 120 Ohm - OSDP Reader |
| Power | 8 | 20 AWG | 7x28 | BC - Bare Copper | 8 Conductors For Molex: Power, Lock Power, Tamper |
| Element | Material | Nom. Thickness | Color Code |
|---|---|---|---|
| Data Pair(s) | FEP - Fluorinated Ethylene Propylene | .025 in (0.64 mm) | White/Green Data Pair |
| Power | PVC - Polyvinyl Chloride | .009 in (0.23 mm) | Black, Red, Blue, Yellow, Violet, Pink, Gray, Tan |
| Element | Shield Type | Material | Coverage | Drainwire Type | Notes |
|---|---|---|---|---|---|
| Data Pair(s) | Tape | Bi-Laminate (Alum+Poly) | 100% | 24 AWG (7x32) TC | Drain Inside the Foil |
| Power | No Shield | Unshielded |
| Color |
|---|
| Yellow |
| Material | Nom. Thickness | Nom. Diameter | Ripcord |
|---|---|---|---|
| PVC - Polyvinyl Chloride | .015 in (0.38 mm) | .290 in (7.37 mm) | Yes |
| Overall Cable Diameter (Nominal): | .290 in (7.37 mm) |
| Element | Nom. Conductor DCR | Nom. Capacitance Cond-to-Cond | Nom. Capacitance Cond-to-Other (Conds + Shield) | Nom. Characteristic Impedence |
|---|---|---|---|---|
| Data Pair(s) | 16.3 Ohm/1000ft (53.5 Ohm/km) | 11.2 pF/ft (36.7 pF/m) | 21.8 pF/ft (71.5 pF/m) | 120 Ohm |
| Power | 10.2 Ohm/1000ft (33.5 Ohm/km) |
| UL Voltage Rating |
|---|
| 300 V |
| UL Temperature | Operating |
|---|---|
| 75°C | 0°C to +75°C |
| Stationary Min. | Installation Min. |
|---|---|
| 2.9 in (74 mm) | 2.5 in (64 mm) |
| Max. Pull Tension: | 104 lb/f |
| Bulk Cable Weight: | 42 lbs (19 kg) |
| Environmental Suitability: | Indoor - Plenum |
| Flammability / Reaction to Fire: | NFPA 262, UL 910 (Plenum), FT6 |
| CPR Compliance: | CPR Euroclass: Eca |
| NEC / UL Compliance: | Article 800, CMP |
| CEC / C(UL) Compliance: | CMP |
| TIA/EIA Compliance: | TIA/EIA RS485 |
| European Directive Compliance: | EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance: | China RoHS II (GB/T 26572-2011) |
| Notes: | Cold environment installation: When installing cables that have been stored at ambient temperatures of 32 degrees Fahrenheit (0 degrees Centigrade) or lower, Belden recommends conditioning of the cable for 12 hours at room temperature prior to individual cable leg |
| Update and Revision: | Revision Number: 0.5 Revision Date: 01-14-2026 |
