6407FE - Security & Sound, #20-9c, BC, Shielded, CMP

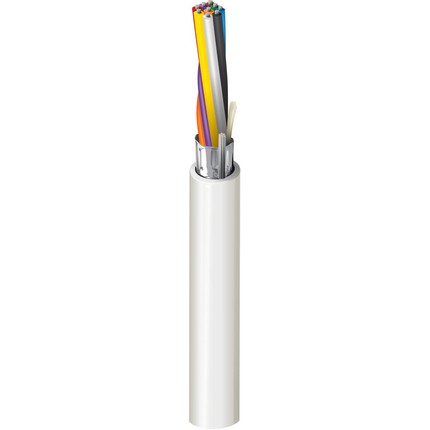

Security & Sound Cable, Plenum-CMP, 9-20 AWG stranded bare copper conductors with Flamarrest® insulation, Beldfoil® shield and Flamarrest® jacket with ripcord

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Conductors
207x28BC - Bare Copper9
Conductor Count: 9
Insulation
MaterialMaterial Trade NameNominal Wall Thickness
LS PVC - Low Smoke Polyvinyl ChlorideFlamarrest®0.009 in
Color Chart
Color
Black
Red
White
Green
Brown
Blue
Orange
Yellow
Purple
Outer Shield Material
TypeMaterialMaterial Trade NameCoverage [%]Drainwire MaterialDrainwire AWGDrainwire Construction n x D
TapeAluminum/PolyesterBeldfoil®100 %TC - Tinned Copper24Stranded (7x32)
Outer Jacket Material
MaterialMaterial Trade NameNominal DiameterNominal Wall ThicknessRipcord
LS PVC - Low Smoke Polyvinyl ChlorideFlamarrest®0.229 in0.015 inYes

Electrical Characteristics

Conductor DCR
Nominal Conductor DCRNominal Outer Shield DCR
10.2 Ohm/1000ft15.2 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to ConductorNom. Capacitance Conductor to Other Conductor to Shield
36 pF/ft64.8 pF/ft
Current
Max. Recommended Current [A]
2.6 Amps per conductor @ 25°C A
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

Operating Temp Range: 0°C To +75°C

Mechanical Characteristics

Bulk Cable Weight: 48.8 lbs/1000ft
Max Recommended Pulling Tension: 122.5 lbs
Min Bend Radius/Minor Axis: 2.25 in

Standards

NEC/(UL) Specification: CMP
CEC/C(UL) Specification: CMP

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2005-04-01
CA Prop 65 (CJ for Wire & Cable): Yes
MII Order #39 (China RoHS): Yes

Flammability, LS0H, Toxicity Testing

UL Flammability: NFPA 262 Plenum Flame Test (UL910)
CSA Flammability: FT6
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): Yes

Part Number

Non-Plenum Number: 5407FE
Variants
Item #ColorUPC
6407FE 8771000Natural612825176848

History

Update and Revision: Revision Number: 0.221 Revision Date: 10-09-2019
Date: 2005-04-01
No accessories are available for this product
