6406UE - Security & Sound, #20-8c, BC, CMP

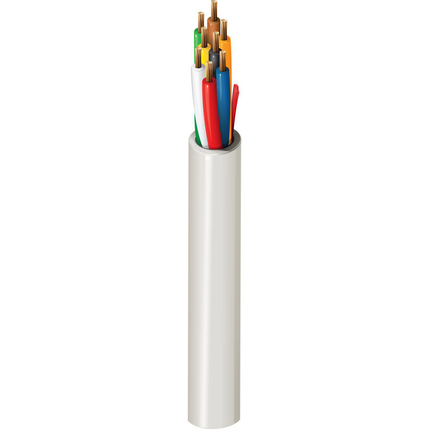

Security & Sound Cable, Plenum-CMP 8-20 AWG stranded bare copper conductors with Flamarrest® insulation, Flamarrest® jacket with ripcord

Product Overview

Suitable Applications: Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls

Construction Details

Conductor
ElementNumber of ElementSizeStrandingMaterial
Conductor(s)820 AWG7x28BC - Bare Copper
Insulation
ElementMaterialNom. ThicknessNom. Insulation DiameterColor Code
Conductor(s)PVC - Polyvinyl Chloride0.009 in (0.23 mm)0.054 in (1.4 mm)Black, Red, White, Green, Brown, Blue, Orange, Yellow
Outer Shield
Material
No Shield
Outer Jacket
MaterialNom. ThicknessNom. DiameterRipcord
PVC - Polyvinyl Chloride0.015 in (0.38 mm)0.209 inYes
Overall Cable Diameter (Nominal): 0.209 in

Electrical Characteristics

Electricals
Nom. Conductor DCRNom. Capacitance Cond-to-CondMax. Current
10.82 Ohm/1000ft27 pF/ft (89 pF/m)2.6 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V

Mechanical Characteristics

Temperature
UL TemperatureOperating
75°C0°C To +75°C
Bend Radius
Stationary Min.Installation Min.
2.09 in (53.1 mm)2.09 in
Max. Pull Tension: 100.8 lbs (45.72 kg)
Bulk Cable Weight: 40.5 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor
Flammability / Reaction to Fire: NFPA 262 (UL910), FT6, IEC 60332-1-2
CPR Compliance: CPR Euroclass: Eca
NEC / UL Compliance: Article 800, CMP
CEC / C(UL) Compliance: CMP
European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)
Non-Plenum Number: 5406UE

History

Update and Revision: Revision Number: 0.293 Revision Date: 04-08-2022

Part Numbers

Variants
Item #ColorUPC
6406UE 8771000Natural612825176831
