6402FE - Security & Sound, #20-4c, BC, Shielded, CMP

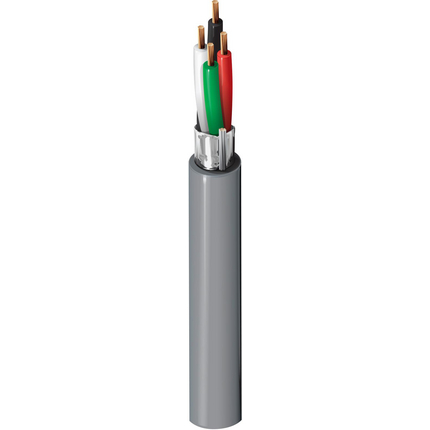

Security & Sound Cable, Plenum-CMP, 4-20 AWG stranded bare copper conductors with Flamarrest® insulation, Beldfoil® shield and Flamarrest® jacket with ripcord

Product Overview

Suitable Applications: Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls, Noisy Environment

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Conductors
207x28BC - Bare Copper4
Conductor Count: 4
Insulation
MaterialMaterial Trade NameNominal Wall Thickness
PVC-LS - Polyvinyl Chloride (Low Smoke)Flamarrest®0.009 in
Color Chart
NumberColor
1Black
2Red
3White
4Green
Outer Shield Material
TypeMaterialMaterial Trade NameCoverage [%]Drainwire MaterialDrainwire AWGDrainwire Construction n x D
TapeAlum / PolyBeldfoil®100%TC - Tinned Copper22Solid
Outer Jacket Material
MaterialMaterial Trade NameNominal DiameterNominal Wall ThicknessRipcord
PVC-LS - Polyvinyl Chloride (Low Smoke)Flamarrest®0.164 in0.015 inYes

Electrical Characteristics

Conductor DCR
Nominal Conductor DCRNominal Outer Shield DCR
10.2 Ohm/1000ft11.3 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to ConductorNom. Capacitance Conductor to Other Conductor to Shield
36 pF/ft64.8 pF/ft
Current
ElementMax. Recommended Current [A]
10C Temperature Rise3 Amps per conductor @ 25°C A
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

Operating Temp Range: 0°C To +75°C

Mechanical Characteristics

Bulk Cable Weight: 25 lbs/1000ft
Max Recommended Pulling Tension: 59.5 lbs
Min Bend Radius/Minor Axis: 1.7 in

Standards

NEC/(UL) Specification: CMP
CEC/C(UL) Specification: CMP

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2005-04-01
MII Order #39 (China RoHS): Yes

Suitability

Suitability - Indoor: Yes

Flammability, LS0H, Toxicity Testing

UL Flammability: NFPA 262 Plenum Flame Test (UL910)
CSA Flammability: FT6
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): Yes

Part Number

Non-Plenum Number: 5402FE
Variants
Item #ColorUPC
6402FE 8771000Natural612825176749
6402FE 877U1000Natural612825176732
Footnote: C - CRATE REEL PUT-UP.

History

Update and Revision: Revision Number: 0.230 Revision Date: 04-28-2020
Date: 2005-04-01
No accessories are available for this product
