6400UE - Security & Sound, 2 Conductor 20 AWG, BC, CMP

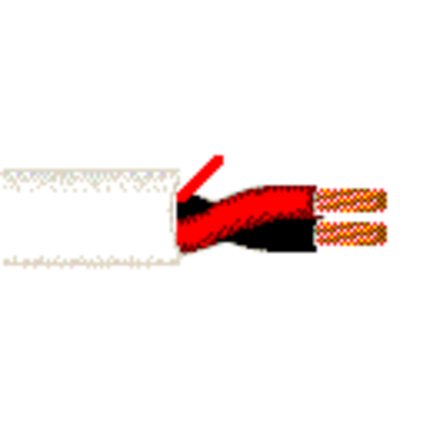

Security & Commercial Audio Cable, Plenum-CMP 2-20 AWG stranded bare copper conductors with Flamarrest® insulation, Flamarrest® jacket with ripcord

Product Overview

Suitable Applications: Intercom/PA Systems, Sound/Audio Systems

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Conductors
207x28BC - Bare Copper2
Conductor Count: 2
Insulation
MaterialMaterial Trade NameNominal Wall Thickness
PVC-LS - Polyvinyl Chloride (Low Smoke)Flamarrest®0.008 in
Color Chart
NumberColor
1Black
2Red
Outer Shield Material
Material
No Shield
Outer Jacket Material
MaterialMaterial Trade NameNominal DiameterNominal Wall ThicknessRipcord
PVC-LS - Polyvinyl Chloride (Low Smoke)Flamarrest®0.134 in0.015 inYes

Construction and Dimensions

Cabling
Twists
6 twist/ft

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR
10.2 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor
30 pF/ft
Inductance
Nominal Inductance
0.16 µH/ft
Current
Max. Recommended Current [A]
Per conductor @ 25°C: 3.75 A
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

UL Temp Rating: 75°C
Operating Temp Range: 0°C To +75°C

Mechanical Characteristics

Bulk Cable Weight: 12 lbs/1000ft
Max Recommended Pulling Tension: 25.2 lbs
Min Bend Radius/Minor Axis: 1.5 in

Standards

NEC Articles: 800
NEC/(UL) Specification: CMP
CEC/C(UL) Specification: CMP
CPR Euroclass: Eca

Applicable Environmental and Other Programs

Environmental Space: Indoor - Plenum
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2005-04-01
MII Order #39 (China RoHS): Yes

Flammability, LS0H, Toxicity Testing

C(UL) Flammability: FT6
UL Flammability: NFPA 262
ISO/IEC Flammability: IEC 60332-1-2
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): Yes

Part Number

Non-Plenum Number: 5400UH
Variants
Item #ColorPutup TypeLengthUPC
6400UE 877C500NaturalCoil500 ft612825176633
6400UE 877Z500NaturalReelTuff Box500 ft
6400UE 8771000NaturalReel1,000 ft612825176626
6400UE 877U1000NaturalUnReel1,000 ft612825420064
6400UE 877Z1000NaturalReelTuff Box1,000 ft612825176664
Footnote: C - CRATE REEL PUT-UP.
