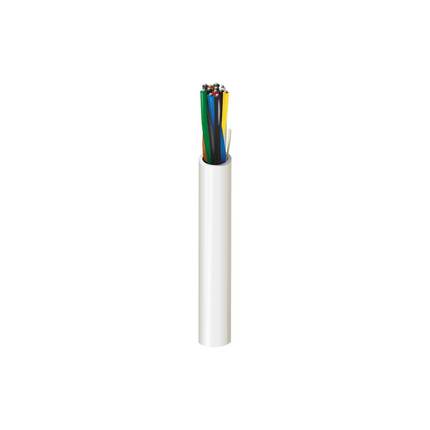

6345UE - Security & Sound, #18-6pr, BC, CMP


Security & Sound Cable, Plenum-CMP, 6-18 AWG stranded bare copper pairs with Flamarrest® insulation, Flamarrest® jacket with ripcord

Product Overview

Suitable Applications: Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Pairs
187x26BC - Bare Copper6
Conductor Count: 12
Insulation
MaterialMaterial Trade NameNominal Wall Thickness
PVC-LS - Polyvinyl Chloride (Low Smoke)Flamarrest®0.009 in
Color Chart
Color
Black & Red
Black & White
Black & Green
Black & Blue
Black & Yellow
Black & Brown
Outer Shield Material
Material
No Shield
Outer Jacket Material
MaterialMaterial Trade NameNominal DiameterNominal Wall ThicknessRipcord
PVC-LS - Polyvinyl Chloride (Low Smoke)Flamarrest®0.353 in0.017 inYes

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR
6.55 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor
29 pF/ft
Current
Max. Recommended Current [A]
3.5 Amps per conductor @ 25°C A
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

Operating Temp Range: 0°C To +75°C

Mechanical Characteristics

Bulk Cable Weight: 88.1 lbs/1000ft
Max. Pull Tension: 268.8 lbs
Min Bend Radius/Minor Axis: 3.5 in

Standards

NEC/(UL) Compliance: CMP
CEC/C(UL) Compliance: CMP

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2005-04-01
MII Order #39 (China RoHS): Yes

Flammability, LS0H, Toxicity Testing

CSA Flammability: FT6
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): Yes

Part Number

Non-Plenum Number: 5345UE
Variants
Item #ColorUPC
6345UE 8771000Natural612825176480

History

Update and Revision: Revision Number: 0.213 Revision Date: 04-28-2020
Date: 2005-04-01
