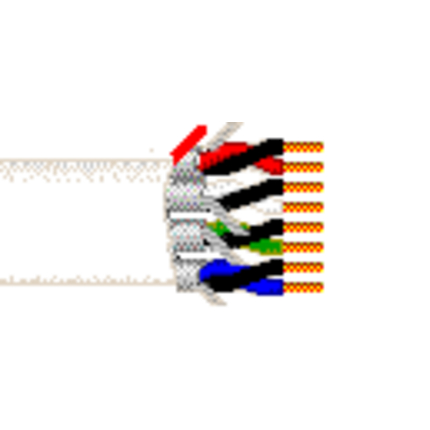

6345PC - Security & Sound, 6 Pair 18 AWG BC, Individually Shielded, Plenum


Security, Pro Audio & Intercom Cable, 6 Pair 18 AWG stranded (7x26) bare copper pairs with FEP insulation, Individually Beldfoil® shielded, Plenum, Flamarrest® jacket.

Construction Details

Conductor
ElementNumber of ElementSizeStrandingMaterial
Pair(s)618 AWG7x26BC - Bare Copper
Insulation
ElementMaterialNom. ThicknessNom. Insulation DiameterColor Code
Pair(s)FEP - Fluorinated Ethylene Propylene0.0095 in (0.24 mm)0.0655 in (1.66 mm)Black & White, Black & Green, Black & Blue, Black & Yellow, Black & Brown, Black & Red
Inner Shield
ElementShield TypeMaterialCoverageDrainwire Type
Pair(s)TapeBi-Laminate (Alum+Poly)100%24 AWG (7x32) TC
Outer Shield
Material
No Shield
Outer Jacket
MaterialNom. ThicknessNom. DiameterRipcord
FEP - Fluorinated Ethylene Propylene0.019 in (0.48 mm)0.402 inYes
Overall Cable Diameter (Nominal): 0.402 in

Electrical Characteristics

Electricals
Nom. Conductor DCRNom. Inner Shield DCRNom. Capacitance Cond-to-CondNom. Capacitance Cond-to-Other (Conds + Shield)Max. Current
6.5 Ohm/1000ft15.7 Ohm/1000ft (51.5 Ohm/km)44 pF/ft (140 pF/m)79.2 pF/ft (260 pF/m)3.5 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V

Mechanical Characteristics

Temperature
UL TemperatureOperating
75°C-20°C To +75°C
Bend Radius
Stationary Min.Installation Min.
4.02 in (102 mm)4.02 in
Max. Pull Tension: 274 lbs (124 kg)
Bulk Cable Weight: 111 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor - Plenum, Indoor
Flammability / Reaction to Fire: NFPA 262 (UL 910), FT6
NEC / UL Compliance: Article 800, CMP
CEC / C(UL) Compliance: CMP
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)

History

Update and Revision: Revision Number: 0.374 Revision Date: 04-08-2022

Part Numbers

Variants
Item #ColorPutup TypeLengthUPC
6345PC 8771000NaturalReel1,000 ft612825176565
