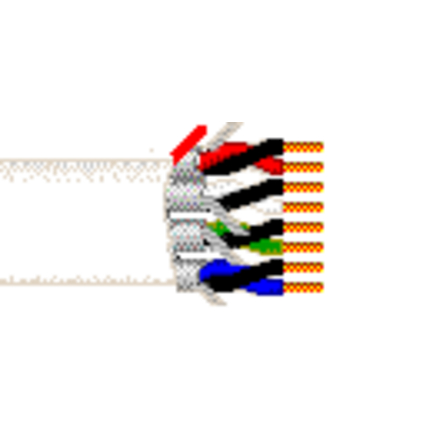

6343PC - Security & Sound, 4 Pair 18 AWG BC, Individually Shielded, Plenum




Security, Pro Audio & Intercom Cable, 4 Pair 18 AWG stranded (7x26) bare copper pairs with FEP insulation, Individually Beldfoil® shielded, Plenum, Flamarrest® jacket.

Construction Details

Conductor
ElementNo. of ElementsSizeStrandingMaterial
Pair(s)418 AWG7x26BC - Bare Copper
Insulation
ElementMaterialNom. ThicknessNom. Insulation DiameterColor Code
Pair(s)FEP - Fluorinated Ethylene Propylene0.01 in (0.25 mm)0.066 in (1.7 mm)Black & Red, Black & White, Black & Green, Black & Blue
Inner Shield
Shield TypeMaterialCoverageDrainwire Type
TapeBi-Laminate (Alum+Poly)100%24 AWG (7x32) TC
Outer Shield
Material
No Shield
Outer Jacket
MaterialNom. ThicknessNom. DiameterRipcord
PVC - Polyvinyl Chloride0.0165 in (0.419 mm)0.332 inYes
Overall Cable Diameter (Nominal): 0.332 in

Electrical Characteristics

Electricals
Nom. Conductor DCRNom. Inner Shield DCRNom. Capacitance Cond-to-CondNom. Capacitance Cond-to-Other (Conds + Shield)Max. Current
6.93 Ohm/1000ft14.4 Ohm/1000ft (47.2 Ohm/km)44 pF/ft (140 pF/m)79.2 pF/ft (260 pF/m)9.8 Amps per Conductor at 30ºC
Voltage
UL Voltage Rating
300 V

Mechanical Characteristics

Temperature
UL TemperatureOperating
75°C0°C to +75°C
Bend Radius
Stationary Min.Installation Min.
3.32 in (84.3 mm)3.32 in
Max. Pull Tension: 184.7 lbs (83.78 kg)
Bulk Cable Weight: 75 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor - Plenum, Indoor
Flammability / Reaction to Fire: NFPA 262 (UL 910), FT6
NEC / UL Compliance: Article 800, CMP
CEC / C(UL) Compliance: CMP
European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)

History

Update and Revision: Revision Number: 0.378 Revision Date: 12-20-2022

Part Numbers

Variants
Item #ColorPutup TypeLengthUPCFootnote
6343PC 8771000NaturalReel1,000 ft612825176411C
