6342PC - Security & Sound, 3 Pair 18 AWG, BC, Individually Shielded, CMP

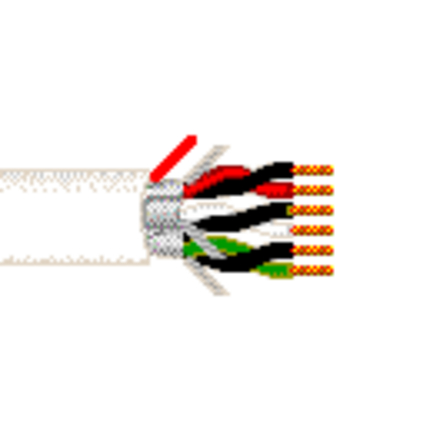

Security, Pro Audio & Intercom Cable, Plenum-CMP, 3-18 AWG stranded bare copper pairs with FEP insulation, Individually Beldfoil® shielded and Flamarrest® jacket

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Pairs
187BC - Bare Copper3
Conductor Count: 4
Total Number of Pairs: 3
Insulation
MaterialNominal Wall Thickness
FEP - Fluorinated Ethylene Propylene0.01 in
Color Chart
NumberColor
1Black & Red
2Black & White
3Black & Green
Inner Shield Material
TypeMaterialMaterial Trade NameCoverage [%]Drainwire MaterialDrainwire AWGDrainwire Construction n x D
TapeBi-Laminate (Alum+Poly)Beldfoil®100%TC - Tinned Copper247x32
Outer Shield Material
Material
No Shield
Outer Jacket Material
MaterialMaterial Trade NameNominal DiameterNominal Wall ThicknessRipcord
PVC - Polyvinyl ChlorideFlamarrest®0.3 in0.0165 inYes

Electrical Characteristics

Conductor DCR
Individual Pair Nominal Shield DCRNominal Conductor DCRNominal Inner Shield DCR
14.4 Ohm/1000ft6.5 Ohm/1000ft14.4 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to ConductorNom. Capacitance Conductor to Other Conductor to Shield
44 pF/ft79.2 pF/ft
Inductance
Nominal Inductance
0.16 µH/ft
Current
Max. Recommended Current [A]
3.5 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

UL Temp Rating: 75°C
Operating Temp Range: 0°C To +75°C

Mechanical Characteristics

Bulk Cable Weight: 61.7 lbs/1000ft
Max. Pull Tension: 176.4 lbs
Min Bend Radius/Minor Axis: 3 in

Standards

NEC/(UL) Compliance: CMP
CEC/C(UL) Compliance: CMP

Applicable Environmental and Other Programs

Environmental Space: Indoor - Plenum
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2005-04-01
MII Order #39 (China RoHS): Yes

Flammability, LS0H, Toxicity Testing

C(UL) Flammability: FT6
UL Flammability: NFPA 262
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): Yes

Part Number

Variants
Item #ColorPutup TypeLengthUPC
6342PC 8771000NaturalReel1,000 ft612825176404
Footnote: C - CRATE REEL PUT-UP.

History

Update and Revision: Revision Number: 0.281 Revision Date: 08-25-2020
Date: 2005-04-01
