6342FE - Security & Sound, #18-3pr, BC, Shielded, CMP

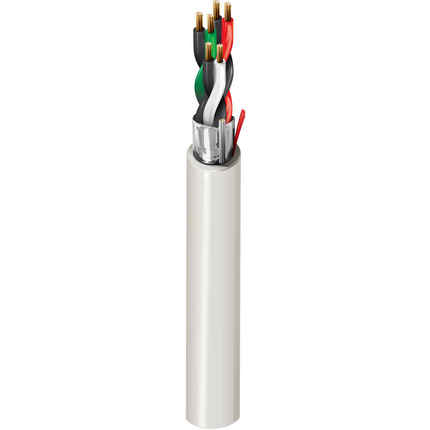

Security & Sound Cable, Plenum-CMP, 3-18 AWG stranded bare copper pairs with Flamarrest® insulation, Beldfoil® shield and Flamarrest® jacket with ripcord

Product Overview

Suitable Applications: Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls, Noisy Environment

Construction Details

Conductor
ElementNumber of ElementSizeStrandingMaterial
Pair(s)3187x26BC - Bare Copper
Insulation
MaterialNom. ThicknessNom. Insulation DiameterColor Code
PVC - Polyvinyl Chloride0.009 in (0.23 mm)0.063 in (1.6 mm)Black & Red, Black & White, Black & Green
Outer Shield
Shield TypeMaterialCoverageDrainwire Type
TapeBi-Laminate (Alum+Poly)100%20 AWG (7x28) TC
Outer Jacket
MaterialNom. ThicknessNom. DiameterRipcord
PVC - Polyvinyl Chloride0.015 in (0.38 mm)0.282 inYes

Electrical Characteristics

Electricals
Nom. Conductor DCRNom. Capacitance Cond-to-CondNom. Capacitance Cond-to-Other (Conds + Shield)Max. Current
6.93 Ohm/1000ft40 pF/ft (130 pF/m)72 pF/ft (240 pF/m)3.5 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V

Mechanical Characteristics

Temperature
UL TemperatureOperating
75°C0°C To +75°C
Bend Radius
Stationary Min.Installation Min.
2.82 in (71.6 mm)2.82 in
Max. Pull Tension: 147 lbs (66.7 kg)
Bulk Cable Weight: 49 lbs/1000ft

Standards and Compliance

Flammability / Reaction to Fire: NFPA 262 (UL910), FT6
NEC / UL Compliance: Article 800, CMP
CEC / C(UL) Compliance: CMP
European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)
Non-Plenum Number: 5342FE

History

Update and Revision: Revision Number: 0.310 Revision Date: 04-08-2022

Part Numbers

Variants
Item #ColorUPC
6342FE 8771000Natural612825176343
