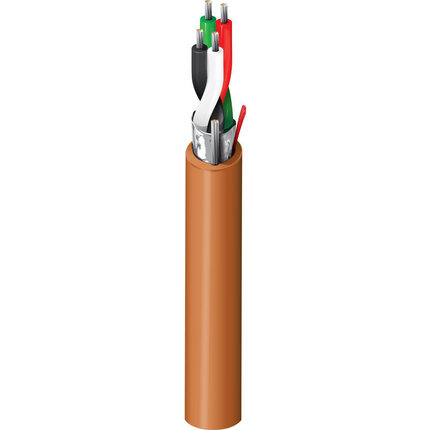

6341PT - Thermostat & Control, #18-2pr, TC, Indiv. Foil, CMP


Thermostat & Control Cable, Plenum-CMP, 2-18 AWG stranded tinned copper pairs with foam FEP insulation, Individually Beldfoil® shielded and Flamarrest® jacket

Product Overview

Suitable Applications: Thermostat, Control, Noisy Environment

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Pairs
187x26TC - Tinned Copper2
Conductor Count: 4
Insulation
Material
FEP - Fluorinated Ethylene Propylene (Foam)
Color Chart
NumberColor
1Black & White
2Green & Red
Outer Shield Material
TypeMaterialMaterial Trade NameCoverage [%]Drainwire MaterialDrainwire AWGDrainwire Construction n x D
TapeBi-Laminate (Alum+Poly)Beldfoil®100%TC - Tinned Copper187x26
Outer Jacket Material
MaterialMaterial Trade NameNominal Diameter
PVC - Polyvinyl ChlorideFlamarrest®0.28 in

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR
6.6 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor
13.7 pF/ft
Inductance
Nominal Inductance
0.21 µH/ft
Delay
Max. Delay Skew
78 ns/100m
High Freq
Max./Min. Input Impedance (unFitted)
100 ± 10 Ohm
Current
Max. Recommended Current [A]
8.1 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

UL Temp Rating: 75°C
Operating Temp Range: -20°C To +75°C

Mechanical Characteristics

Bulk Cable Weight: 56 lbs/1000ft
Max. Pull Tension: 134 lbs
Min Bend Radius/Minor Axis: 2.8 in

Standards

NEC/(UL) Compliance: CMP
CEC/C(UL) Compliance: CMP

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2006-02-01
MII Order #39 (China RoHS): Yes

Flammability, LS0H, Toxicity Testing

C(UL) Flammability: FT6
UL Flammability: NFPA 262 Plenum Flame Test (UL910)
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): Yes

Part Number

Variants
Item #ColorUPC
6341PT 0011000Brown612825176299
Footnote: C - CRATE REEL PUT-UP.

History

Update and Revision: Revision Number: 0.248 Revision Date: 09-30-2020
Date: 2006-02-01
No accessories are available for this product
