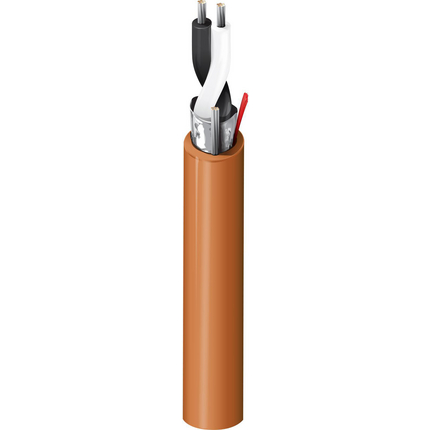

6340FT - Thermostat & Control, #18-2c, TC, O/A Foil, CMP


Thermostat & Control Cable, Plenum-CMP, 1-18 AWG stranded tinned copper pair with foam FEP insulation, Beldfoil® shield, Flamarrest® jacket

Product Overview

Suitable Applications: Thermostat, Control, Noisy Environment

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Pairs
187x26TC - Tinned Copper1
Conductor Count: 2
Insulation
Material
FEP - Fluorinated Ethylene Propylene (Foam)
Color Chart
NumberColor
1Black & White
Outer Shield Material
TypeMaterialMaterial Trade NameCoverage [%]Drainwire MaterialDrainwire AWGDrainwire Construction n x D
TapeAlum / PolyBeldfoil®100 %TC - Tinned Copper18Solid
Outer Jacket Material
MaterialMaterial Trade NameNominal Diameter
PVC-LS - Polyvinyl Chloride (Low Smoke)Flamarrest®0.232 in

Electrical Characteristics

Conductor DCR
Nominal Conductor DCRNominal Outer Shield DCR
6.6 Ohm/1000ft16.9 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor
16.9 pF/ft
Inductance
Nominal Inductance
0.21 µH/ft
Delay
Max. Delay SkewNominal Velocity of Propagation (VP) [%]
78 ns/100m78 %
High Freq
Max./Min. Input Impedance (unFitted)
100 ± 22 Ohm
Current
Max. Recommended Current [A]
8.1 Amps per conductor @ 25°C A
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

UL Temp Rating: 75°C
Operating Temp Range: -20°C To +75°C

Mechanical Characteristics

Bulk Cable Weight: 26 lbs/1000ft
Max Recommended Pulling Tension: 67 lbs
Min Bend Radius/Minor Axis: 2.3 in

Standards

NEC/(UL) Specification: CMP
CEC/C(UL) Specification: CMP

Applicable Environmental and Other Programs

EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2006-02-01
MII Order #39 (China RoHS): Yes

Flammability, LS0H, Toxicity Testing

C(UL) Flammability: FT6
UL Flammability: NFPA 262 Plenum Flame Test (UL910)
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): Yes

Part Number

Variants
Item #ColorUPC
6340FT 0011000Brown612825176244
Footnote: C - CRATE REEL PUT-UP.

History

Update and Revision: Revision Number: 0.243 Revision Date: 04-28-2020
Date: 2006-02-01
