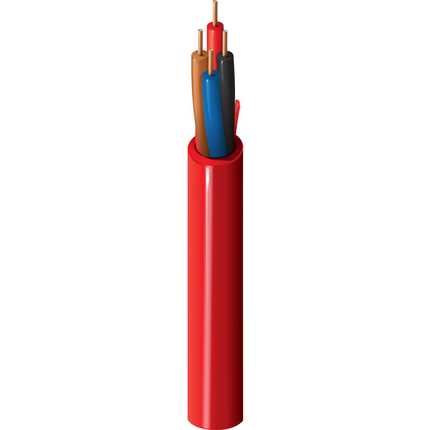

6322UL - Fire Alarm, #18-4c BC, FPLP


Fire Alarm Cable, Plenum-FPLP, 4-18 AWG solid bare copper conductors with Flamarrest® insulation, Flamarrest® jacket with ripcord

Product Overview

Suitable Applications: Fire Alarm, Monitor/Detection, Circuits: Audio, Control, Initiating, Notification

Construction Details

Conductor
ElementNumber of ElementSizeStrandingMaterial
Conductor(s)418SolidBC - Bare Copper
Insulation
MaterialNom. ThicknessNom. Insulation DiameterColor Code
PVC - Polyvinyl Chloride0.008 in (0.20 mm)0.057 in (1.4 mm)Black, Red, Brown, Blue
Outer Jacket
MaterialNom. ThicknessNom. DiameterRipcord
PVC - Polyvinyl Chloride0.015 in (0.38 mm)0.166 inYes

Electrical Characteristics

Electricals
Nom. Conductor DCRNom. Capacitance Cond-to-CondMax. Current
6.65 Ohm/1000ft33.5 pF/ft (110 pF/m)4 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V

Mechanical Characteristics

Temperature
UL TemperatureOperating
75°C0°C To +75°C
Bend Radius
Stationary Min.Installation Min.
1.32 in (33.5 mm)1.32 in
Max. Pull Tension: 78.4 lbs (35.6 kg)
Bulk Cable Weight: 28 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor
Flammability / Reaction to Fire: NFPA 262 (UL910)
NEC / UL Compliance: Article 760, FPLP
European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)
Other Standard Compliance(s): California State Fire Marshall
Non-Plenum Number: 5322UL

History

Update and Revision: Revision Number: 0.302 Revision Date: 04-08-2022

Part Numbers

Variants
Item #ColorUPC
6322UL 0021000Red612825175995
6322UL 002C500Red612825175971
6322UL 002U1000Red612825175988
Date: 2005-04-01
