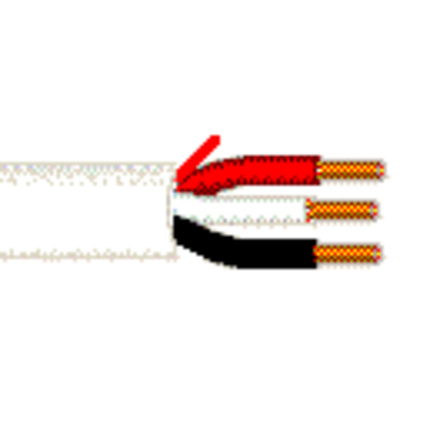

6321UE - Security & Sound, 3 Conductor 18 AWG BC, Plenum


Security & Commercial Audio Cable, 3 Conductor 18 AWG solid bare copper conductors with Flamarrest® insulation, Plenum, Flamarrest® jacket with ripcord.

Product Overview

Suitable Applications: Intercom/PA Systems, Sound/Audio Systems

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Conductors
18SolidBC - Bare Copper3
Conductor Count: 3
Insulation
MaterialMaterial Trade NameNominal Wall Thickness
PVC - Polyvinyl ChlorideFlamarrest®0.009 in
Color Chart
NumberColor
1Black
2Red
3White
Outer Shield Material
Material
No Shield
Outer Jacket Material
MaterialMaterial Trade NameNominal DiameterNominal Wall ThicknessRipcord
PVC - Polyvinyl ChlorideFlamarrest®0.156 in0.015 inYes

Construction and Dimensions

Cabling
Twists
4 twist/ft

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR
6.4 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor
29 pF/ft
Current
Max. Recommended Current [A]
5 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

UL Temp Rating: 75°C
Operating Temp Range: 0°C To +75°C

Mechanical Characteristics

Bulk Cable Weight: 22.2 lbs/1000ft
Max. Pull Tension: 58.8 lbs
Min Bend Radius/Minor Axis: 1.5 in

Standards

NEC Articles: Article 800
NEC/(UL) Compliance: CMP
CEC/C(UL) Compliance: CMP

Applicable Environmental and Other Programs

Environmental Space: Indoor - Plenum
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2005-04-01
MII Order #39 (China RoHS): Yes

Flammability, LS0H, Toxicity Testing

C(UL) Flammability: FT6
UL Flammability: NFPA 262
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): Yes

Part Number

Non-Plenum Number: 5321UE
Variants
Item #ColorPutup TypeLengthUPC
6321UE 8771000NaturalReel1,000 ft612825426875
6321UE 877Z1000NaturalReelTuff Box1,000 ft612825176268
Footnote: C - CRATE REEL PUT-UP.

History

Update and Revision: Revision Number: 0.269 Revision Date: 06-24-2020
Date: 2005-04-01
