6320FL - Fire Alarm, #18-2c BC, Shielded, FPLP

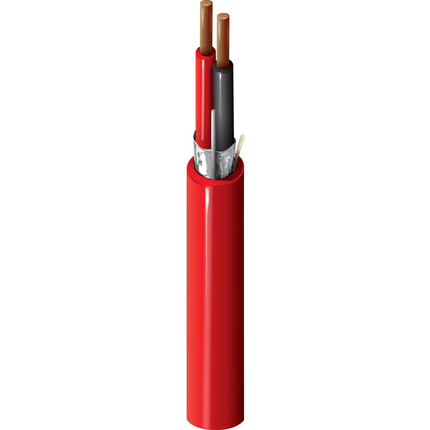

Fire Alarm Cable, Plenum-FPLP, 2-18 AWG solid bare copper conductors with FEP insulation, overall Beldfoil® shield, Flamarrest® jacket with ripcord

Product Overview

Suitable Applications: Fire Alarm, Monitor/Detection, Circuits: Audio, Control, Initiating, Notification, Noisy Environment

Physical Characteristics (Overall)

Conductor
ElementAWGStrandingMaterialNo. of Conductors
Conductor(s)18SolidBC - Bare Copper2
Conductor Count: 2
Insulation
ElementMaterialMaterial Trade NameNominal Wall Thickness
Conductor(s)PVC-LS - Polyvinyl Chloride (Low Smoke)Flamarrest®0.01 in
Color Chart
NumberColor
1Black
2Red
Outer Shield Material
TypeMaterialMaterial Trade NameCoverage [%]Drainwire MaterialDrainwire AWGDrainwire Construction n x D
TapeAlum / PolyBeldfoil®100%TC - Tinned Copper24Solid
Outer Jacket Material
MaterialMaterial Trade NameNominal DiameterNominal Wall ThicknessRipcord
PVC-LS - Polyvinyl Chloride (Low Smoke)Flamarrest®0.155 in0.015 inYes

Construction and Dimensions

Cabling
Twists
4 twist/ft

Electrical Characteristics

Conductor DCR
Nominal Conductor DCRNominal Outer Shield DCR
6.4 Ohm/1000ft16.9 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to ConductorNom. Capacitance Conductor to Other Conductor to Shield
65 pF/ft117 pF/ft
Inductance
Nominal Inductance
0.16 µH/ft
Current
Max. Recommended Current [A]
Per conductor @ 25°C: 5 A
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

UL Temp Rating: 75°C
Operating Temp Range: 0°C To +75°C

Mechanical Characteristics

Bulk Cable Weight: 20.7 lbs/1000ft
Max. Pull Tension: 53.2 lbs
Min Bend Radius/Minor Axis: 1.5 in

Standards

NEC Articles: Article 760
NEC/(UL) Compliance: FPLP
CPR Euroclass: Eca
Other Compliance: California State Fire Marshall

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2005-04-01
MII Order #39 (China RoHS): Yes

Flammability, LS0H, Toxicity Testing

UL Flammability: NFPA 262 Plenum Flame Test (UL910)
IEC Flammability: IEC 60332-1-2
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): Yes

Part Number

Non-Plenum Number: 5320FL
Variants
Item #ColorUPC
6320FL 0101000Black612825175735
6320FL D151000Blue612825350934
6320FL 0051000Green612825350958
6320FL 0021000Red612825175711
6320FL 002C500Red
6320FL 002U1000Red612825175704
6320FL 009U1000White612825175728
6320FL 0091000White612825350965
6320FL 0041000Yellow612825350941
Footnote: C - CRATE REEL PUT-UP.

History

Update and Revision: Revision Number: 0.236 Revision Date: 05-11-2020
Date: 2005-04-01
Belden-Copper-Catalog-2016.pdf
